The PanelDue is a full-colour touch-sensitive graphical control panel for 3D printers. Although primarily intended for use with Duet electronics, it also works with other 3D printer electronics that supports a true serial port and includes the required support in the firmware, for example RADDS. Both RepRapFirmware and Repetier firmware support PanelDue.

These images shows the PanelDue controller paired with a 7 inch display. The design is by David Crocker (DC42 on the RepRap forums). The firmware is located here.

The images are taken by David Crocker. Some show the board on the bottom, one with the control board on the side. The display is not supplied, unless you select an LCD option above.

V3 uses a different firmware binary from the V2 boards. Use thebinaries with -v3- in the filename athttps://github.com/dc42/PanelDueFirmware/releases/tag/v1.17.

If you use a ribbon cable to connect a PanelDue v3 to a version 1.01or later Duet 2 Wifi board, or a Duet 2 Ethernet board, then it will providepower to the PanelDue board and the display. So if the distance betweenthe Duet and PanelDue is short enough, you can use the ribbon cable anddispense with the 4-way cable. Caution: a long ribbon cable may preventPT100 and thermocouple daughter boards from working, because they sharethe same SPI bus. Also a ribbon cable may not work well with the 7"display unless it is very short, due to voltage drop in the cable.

The V3 board is in theory programmable via the serial interface fromthe Duet. However, this also means that you need to disconnect it fromthe Duet in order to program it via USB.

The PanelDue is a full-color touch-sensitive graphical control panel from Duet3D. Although primarily intended for use with Duet electronics, it also works with other 3D printer electronics that supports a true serial port and includes the required support in the firmware, for example RADDS. Both RepRapFirmware and Repetier firmware support PanelDue.

Note that the Duet 3 6HC does not have a 10 pin LCD/SD connector, so you must use the 4 pin cable for connecting a PanelDue if using with a Duet 3 6HC.

The PanelDue is a color touch screen controller for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 5 inch or 7 inch TFT LCD panel from a leading manufacturer, with the PanelDue controller by David Crocker integrated on the LCD"s PCB. Features:-

Connections to the onboard micro SD card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable.  A 300mm long ribbon cable (maximum recommended length) is supplied.

The PanelDue 7i is a color touchscreen controller for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 7 inch TFT LCD panel from a leading manufacturer, with the PanelDue controller by David Crocker integrated on the LCD"s PCB.

Connections to the onboard micro SD card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable.  A 300mm long ribbon cable (maximum recommended length) is supplied.

The PanelDue 5i and 7i are colour touch screen controllers for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 5 inch or 7 inch TFT LCD panel from a leading manufacturer, with the PanelDue controller by David Crocker integrated on the LCD"s PCB. Features:-

Connections to the onboard micro SD card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable. A 300mm long ribbon cable (maximum recommended length) is supplied.

There are two cable options for connecting the PanelDue, both options are included with the PanelDue V3 kit. Option 1 is the included 4-wire cable with Molex KK connector ends. Option 2 is the included 10-wire ribbon cable. For some boards, both cables need to be plugged in to enable both TFT panel and SD card socket.

The length of the 4-way cable is not critical, however the resistance per conductor should not exceed 0.1 ohm. The SD card socket on the TFT panel will not be functional. The cables supplied by Escher3D and Duet3D are about 800mm long. There have been reports of cables up to 1500mm long being successfully used. Take care to route the cable away from motor and endstop cables. Twisting the cables may help prevent cross talk interference.

A PanelDue can be connected to connector IO_0 using a 4-core cable wired like the one shown in the images below. The 4-wire cable supplied with the PanelDue has a 4-way Molex KK connecter on each end, but is supplied with a 5-way Molex KK connector for use with Duet 3. You will need to rewire one end. The 4-wire cable does not allow access to the SD card socket on the PanelDue.

Older versions of the Duet 2 WiFi/Ethernet need both the 4-wire and ribbon cable to be plugged in to use the TFT Panel and the SD card socket, when connecting PanelDue v2.0 or v3.0.

Use a 4-core cable terminated in a Molex KK or compatible connector at the PanelDue end and a 2x4 Dupont-style connector at the Duet end. This plugs into the end of the expansion connector. See https://miscsolutions.wordpress.com/pane....

In order to use the SD card slot on the PanelDue, you must use the ribbon cable option. If you do not wish to use the SD card slot, it"s recommended to use the 4-wire cable option described in Option 1.

The Duet 3 MB6HC has no PanelDue_SD socket. To use the external SD card, it requires RRF 3.4 or later, and a special wiring scheme; see "Duet 3 MB6HC using ribbon cable" section below.

Connect a 10-way ribbon cable between socket X5 on the PanelDue and socket CONN_SD (Duet 2) or PanelDue_SD (Duet 3). The connector is a standard 10 pin 2 row 2.54mm pitch box connector that accepts IDC connectors for 1.27mm ribbon cable.

Caution: if you are using a thermocouple and/or PT100 daughter board, the use of long ribbon cables between the Duet and PanelDue may affect communication between the Duet and the daughter boards, because the ribbon cable connection to the SD card on PanelDue uses the same SPI bus as the daughter boards.

Although the Duet 3 MB6HC does not have a connector for the PanelDue ribbon cable, if access to the SD card on PanelDue is required then this is possible using a special wiring arrangement. You must use RepRapFirmware 3.4 or later, and you must enable the external SD card using this command:

Note: if you are using an older version of either PanelDue 7i or PanelDue 5i, or a non-integrated version of PanelDue, then those do not support the CD signal. In that case you should omit the second port, for example:

The card detect signal (CD) is used to tell the Duet whether a card is inserted or not. Non-integrated versions of PanelDue (V2, V3) and older versions of PanelDue 5i and 7i (v1.0 of the 5i and v2.0 of the 7i) do not provide a card detect signal.

Duet 2 boards do not support the card detect signal on the external SD card, so can never tell whether a card is inserted or not except by trying to read it, and can"t detect a card being removed. No modifications are required connected older or newer PanelDue, or other external SD card adapters, to Duet 2 boards.

Duet 3 boards do support the card detect signal. Newer versions of the PanelDue 5i and 7i (v1.01 and later of the 5i and v2.01 and later of the 7i) provide this signal.

However, if you use a non-integrated versions of PanelDue or older versions of PanelDue 5i and 7i with Duet 3, it is necessary to ground the card detect signal, or the firmware will permanently think no card is inserted. There are a number of ways to achieve this.

This mod will enable the card detect signal. See the pictures below showing how to modify a PanelDue 5i v1.0. Connect a wire (thin enamelled copper in this instance) from the SD card socket Card Detect pin to the appropriate pin on the ribbon cable connector.

On the Duet 3 Mini 5+ you can ground the card detect signal by bridging pins 2 and 4 of the EXP2 connector as shown here. The firmware will see the SD card as always being present.

Generally it is best to run the latest version of the PanelDue firmware that is supported by the RepRapFirmware version on your Duet mainboard. See: Installing and Updating PanelDue Firmware

From RRF v3.2, PanelDue firmware releases are co-ordinated with the RRF release, and share the same version number. Use the PanelDue firmware version that matches your Duet mainboard"s firmware version.

PanelDue will display the bed heater H0 first (even if it is disabled), then iterate the defined tools. It then iterates the defined heaters below this. It expects a 1:1 relationship between tools and heaters. This means:if you have a machine that uses one heater for more than one tool (eg a 2-into-1, filament-swapping hot end), it will display more tools than heaters. Tools may not line up with their respective heaters.

The PanelDue also iterates the heaters from the first defined heater to the last, including all heaters in between, whether defined or not. This means if you have a heater defined on H0 (bed) and one on H5 (Duex output), it will show all the ones in between, eg H0, H1, H2, H3, H4 and H5. For an example, see |https://forum.duet3d.com/post/136207|this forum post|. Ideally, configure heaters on consecutive heater connections.

Due to constraints on display resolution, PanelDue can only display 7 heaters in total on 5" and 7" panels, and 5 on 4.3" panels. If there are more heaters and/or tools than this, some columns will overlap.

These restrictions are largely removed in later versions of the PanelDue firmware. However, they will require you to update RepRapFirmware on your Duet mainboard.

You can use the external SD card socket on the LCD panel if you have used a ribbon cable as described above. Please note, the SPI interface provided by this SD card socket is much slower than the on-board SD card socket built into the Duet. Therefore we recommend that you do not upload files to this card over the network. Use the external SD card socket only if you want to write files to the SD card on a PC and then move the SD card to your printer.

Caution! Do not use an SD extender cable from the SD socket on the Panel Due. Some types of SD card extender cable have been found to damage the SD card socket. Damage to the SD card socket from using an extender cable is not covered by the warranty.

You will need to make a custom 5-way cable using this table of connections. For the PanelDue 1.1, the X5 connector pins are numbered from the bottom end of the connector (the end close to the X5 legend). On the Duet 0.6 and 0.8.5 you need RepRapFirmware 1.17d or later to get support for the second SD card.

SD signal namePanelDue 1.1 X5 pin #PanelDue 2.0 X5 pin #Duet 2 signal nameDuet 2 CONN_SD pin #Duet 0.6/0.8.5 signal nameDuet 0.6/0.8.5 Expansion pinDueX4 Expansion1 pin

There are two types of controller chip commonly used in these controllers: ST7920 and ST7567. Some Duets support one or both of these types - see below for details. Both types use a menu system stored on the SD card, see 12864 display menu system.

An example of this is the Fysetc Mini 12864 Panel. The controller chip is run from 3.3V, so these displays normally include level shifters which tolerate a wide range of input voltages.

Duet 3 Mini provides two 2x5 ribbon cable headers for connecting a Fysetc 12864 Mini Panel version 1.2 or 2.1 (not 2.0) or compatible ST7567-based controller. When using a version 2.1 controller, the colours of the three Neopixel LEDs built into the display can be set using the M150 command with LED type parameter X2.

We do not recommend connecting a 12864 display with ST7920 controller to the Duet 3 Mini because the 3.3V signals provided by the Duet 3 Mini do not meet the specifications of the ST7920 controller chip when it is powered from 5V. If you do wish to try it, you will most likely have to reduce the clock frequency (M918 F parameter) to get it working at all, and it may not work reliably. Also, note that when configured for 12864 display with ST7920 controller, RRF provides the CS signal on the pin normally uses for A0 because that more closely matched the pinout of typical 12864/ST7920 displays.

The Duet 2 Maestro provides two 2x5 ribbon cable headers for a 12864 display using ST7920 controller. The connector pinout is compatible with the original RepRapDiscount design. There is also more information in this thread: https://forum.duet3d.com/topic/7609/conf....

RepRapFirmware 3.2 and later support a 12864 display using ST7567 controller. RepRapFirmware 3.3 added support for a short string of Neopixels on Duet WiFi and Ethernet, so boards that use a Neopixel for the backlight should be able to be controlled. See this thread on the forum for more details.

We do not recommend connecting a 12864 display with ST7920 controller because the 3.3V signals provided by the Duet 2 WiFi/Ethernet do not meet the specifications of the ST7920 controller chip when it is powered from 5V. If you do wish to try it, you will most likely have to reduce the clock frequency (M918 F parameter) to get it working at all, and it may not work reliably.

Use the pins +5V, GND, IO_0_OUT and IO_0_IN on the IO_0 header (Duet 3), or +5V, GND, TX and RX on the PanelDue header (Duet 2). These should be connected to +5V, GND, TX and RX on the TFT, making sure that TX and RX are swapped.

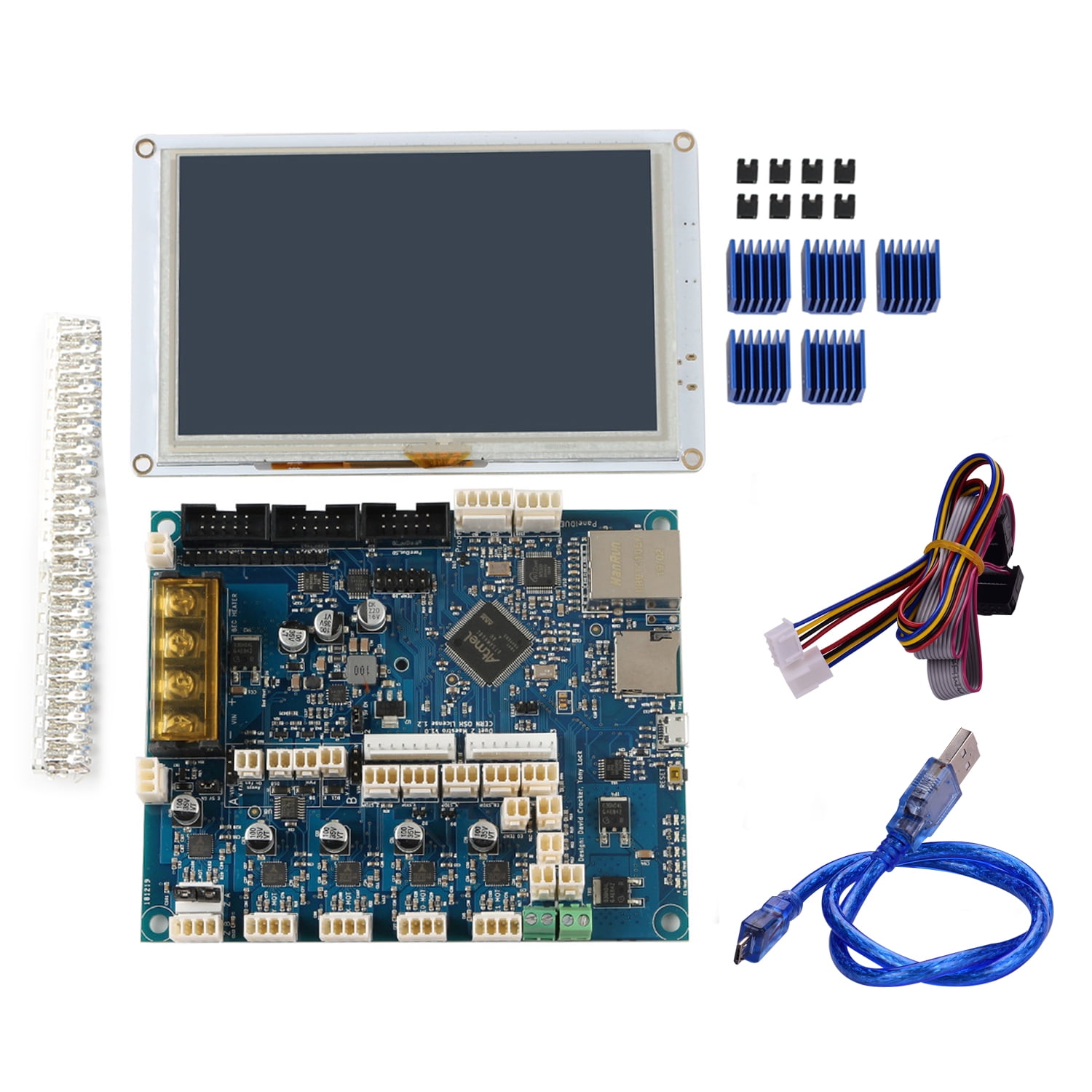

Aurarum produced printers are mostly based on the Duet3d controller boards. We use and sell genuine boards with high success and our customers like it.

The boards can bet either used with common LCD12864 screens or could be used with 5" and 7" touch screen panels of your choice. The touchscreen panels can be either sourced from elsewhere or you could use nicely Duet3D designed integrated panels that a compact, look nice and work out of the box.

The PanelDue is a colour touch screen controller for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 7" TFT LCD panel from a leading manufacturer, with the PanelDue controller by David Crocker integrated on the 7 inch LCD"s PCB. Features:-

Connections to the onboard micro SD card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable.  A 300mm long ribbon cable (maximum recommended length) is available as an option to add to your order.

The Clone PanelDue 5i and 7i are colour touch screen controllers for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 5 inch or 7 inch TFT LCD panel from a leading manufacturer, with the PanelDue controller by David Crocker integrated on the LCD"s PCB. Features:-

Connections to the onboard micro SD card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable.  A 300mm long ribbon cable (maximum recommended length) is supplied.

Installing any Duet3D controller board in a 3D printer is a fantastic upgrade that every hacker and tinkerer should experience at some point. Duet mainboards are powerful and feature-rich, but controlling the machine still requires a network-connected computer or directly connected device via USB. Adding a PanelDue touchscreen makes the power of a Duet board available at the machine, regardless of network connectivity or computer availability. Never be disconnected from your 3D printer again with an integrated PanelDue touchscreen.

Every maker is a unique individual with specific needs, and therefore not every 3D printer is exactly the same. For those who choose to upgrade their hardware with high-performance components, the Duet3D platform of mainboards and accessories is a great choice. The Duet controller boards all have direct connectivity to any of their PanelDue touchscreens, which are available in both 5 and 7-inch variants to suit any maker"s needs. Both are 800x480 resolution, the 7 inch simply offers a larger display. Each PanelDue connects to the mainboard via a 4-pin cable that is provided and has a dedicated connection point on the Duet board.

Connection to the integrated micro SD card slot, serial and power supply connections of PanelDue via 10-pin ribbon cable -maximal recommended length is included (300mm)
