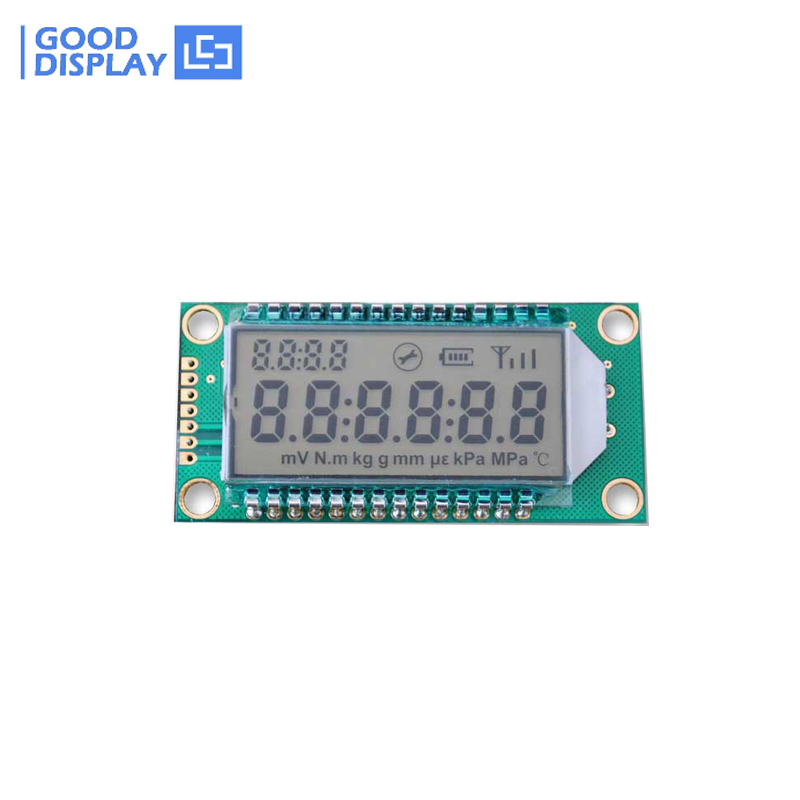

{"specs":[],"skus":[{"id":4098,"useViewType":false,"productId":306,"templateId":1,"code":"","name":"6 digit low temperature LCD screen panel -40℃~80℃, GD46532","stock":0,"price":0.00,"retailPrice":0.00,"weight":0.00,"status":"1","isDefault":"1","createDate":"2021-10-08 15:20:23","updateDate":"2021-10-08 15:20:23","productSkuSpecs":[],"moq":1,"skuId":0,"chargedWeight":0.00}],"specConfs":[]}

Products»All Products»Power & UPS»Batteries & Ultracapacitors»Standard DC-DC Power»Smart DC-DC Power»Smart Battery Chargers»Galvanically Isolated Power Supplies»24V Output Supplies»Ultracapacitor Chargers»Adjustable Output Power Supplies»Universal Chargers»Uninterruptible Power Supplies»Embedded Boards»I/O & Communication»Embedded CAN bus Modules»Embedded Ethernet Switches»Embedded Digital IO Modules»Embedded Analog IO Modules»Embedded Serial IO Modules»PCIe Mini Cards»Embedded Power Supplies»Standard Embedded Power»Smart Embedded Power»PC/104 Power Supplies»Embedded UPS Modules»Embedded Motherboards»PC/104 Motherboards»ETX Motherboards»COM Express Motherboards»EPIC Motherboards»EBX Motherboards»Mini-ITX Motherboards»Micro-ATX Motherboards»Industrial ATX Motherboards»Embedded GPS Modules»GPS Receiver Modules»Embedded GPS Antennas»CPU Boards & SBC»PC/104 SBC»EPIC SBC»ETX SBC»EBX SBC»Mini-ITX SBC»ARM CPU Modules»Micro-ATX SBC»Embedded ATX SBC»Com Express SBC»Embedded Ultracapacitor Modules»Embedded Battery Modules»Embedded Video Cards»Systems»Fanless Box PC»Wide Temperature»Industrial Automation Computers»Rugged Vehicle Computers»Railway Computers»Vehicle Tracking Systems»Industrial Rackmount Computers»Wide Temperature Systems»Digital Displays»Marine Monitors»Rugged LCD Displays»Wide Temperature LCD Displays»Waterproof LCD Panels»Advertising LCD Displays»Stretched Bar LCD»Sunlight Readable LCD Displays»Public Transportation LCD Displays»Railway LCD Displays»Outdoor LCD Displays»High Brightness LCD Displays»Extended Temperature LCD Displays»Industrial Monitors»Panel Computing»Marine Panel PC»Infotainment Panel PC»Wide Temperature Panel PC»HMI Panel PC»Modular Panel PC»Mobile Computing»Rugged Tablets»Rugged Windows Tablets»Rugged Android Tablets»Rugged PDA»Antennas»GPS Antennas»External GPS Antennas»Passive GPS Antennas»Active GPS Antennas»Marine GPS Antennas»Internal GPS Antennas»GNSS Antennas»GLONASS Antennas»Multi-Band Antennas»GPS-GLONASS Antennas»Iridium Antennas»GPS & RF Signal Distribution»GPS Amplifiers»Low Noise Amplifiers»GPS Receivers»Marine GPS Receivers»GPS Attenuators»GPS Combiners»GPS Splitters»Active GPS Splitters»Military GPS Splitters»Rackmount GPS Splitters»Passive GPS Splitters»Repeaters»GPS Repeaters»GLONASS Repeaters»GPS Filters»Enclosures & Chassis»PC/104 Chassis»Rugged Mini-ITX Cases»EPIC Enclosures»EBX Enclosures»Memory & Storage»Memory»Flash Storage»Industrial SSD»SATA Disk On Modules»Industrial Micro SD Cards»Industrial SD Cards»Industrial CompactFlash Cards»Sensors»Industrial Networking»Manufactured by Tri-M»Power & UPS»Standard Power Supplies»HE104: 60 Watt»HE104-DX: 60 Watt»HE104-75W: 75 Watt»HE104+DX: 108 Watt»HE-HP: 100 Watt»Smart Power Supplies (PowerOS)»HESC-SERD: 60 Watt»HESC104+: 108 Watt»HPS3512: 203 Watt»HPSP-XYZ: 240W Programmable»V12SC-SER[-UPS]»TPS1000: 35 Watt, 42 Watt»TPSi1075: 75 Watt, Isolated»TPSi1085: 85 Watt, Isolated»HPSC104-SER: 160 Watt»HESC104: 60 Watt»TPS1035»TPC1000»HPS3524»Smart UPS (PowerOS)»TUP1000: Ultracapacitor UPS»V5SC-SER-UPS: NiMh Battery UPS»UltraUPS»V12SC-SER[-UPS]»Ultra Capacitor Packs»TBP4xxx»Battery Backup Packs»BAT-NiMh45»BAT104-NiMh»BAT104-NiCd»BAT-SLA(25/45)»UltraUPS»Heavy Duty Transient Stopper»CPU Modules»I/O & Communication»Input / Output»IO104-60IN: PC104 I/O Board»IR104 PC/104 Relay Module»Communication»TCB1000 PC/104 Com Board»FlexCom104-GPS»Enclosures»VersaTainer: PC104 & EBX»CanTainer: PC104»FlexTainer: EPIC, MITX, EBX»GPS & Networking»GPS & Networking Boards»FlexCom104-GPS»Antennas»Mighty Mouse: Small GPS Antenna»Micro Mouse: Micro GPS Antenna»Big Brother»Re-Radiators»Super-Radiator»Xtreme-Radiator»Vehicle GPS Repeater»Complete System Solutions»HECS1000 System»UltraUPS Complete Backup Solution»Support Products & Accessories»PC104-T AC Termination Modules»Extract104»TS-I2C Temperature Sensor»DA104»VSX-2812 Video Modules»ISA104X1»Postcode104»Legacy Products»Distributed by Tri-M»Diamond Systems»Single Board Computers»Aurora PC/104 SBC»Helios PC/104 SBC»Neptune EPIC SBC»Pluto ETX SBC»Hercules III EBX SBC»IEI»IEI Mobile»MicroMax Computer Intelligence»San Jose Technology (SANAV)»GNSS Repeaters»RK-306»RK-106»Innodisk»GPS Networking»Litemax»Spanpixel»Durapixel»Navpixel»Aaeon Electronics»Systems»Fanless Embedded Computers»Entry-Level Box PC»ICOP Technology»ICOP-2811»VDX2-6554»VEX-6254»VSX-2812S»86Duino Enjoy Desktop 3D Printer»MPLSelector Guides»Power Selector Guide»Backup Power SelectorServices»Conformal Coating»HumiSeal 1B31»Laser Engraving & EtchingTri-M Rugged»PowerOS»Mining Applications»Mining Application Story»Rail & ITS Applications»Automation & Manufacturing»Mil-Aero Defence & Aerospace»Aerospace Application StorySupportAbout Us»About Us»Privacy PolicywebstoreTriple Programmable PSUQuote Request

1. The LCD screen has reflective mode, semi-transparent mode, and full-transparent mode. I don"t know what the difference is. How to choose? Reflective mode: The lower polarizer is opaque, so it cannot be used with backlight. It is suitable for daytime or occasions with external light sources. The advantage is that the contrast is higher;

Static drive: There is only one common terminal COM, and each pixel is led out by a separate electrode. The advantage is that the display effect is better than that of dynamic driving, but the disadvantage is that there are more pins;

LCD liquid crystal screen: AC drive, AC square wave signal is required to be added to the common terminal and drive terminal, and the corresponding pixel is controlled by changing the phase of the two to control whether the corresponding pixel is displayed. This is the essential difference from the LED digital tube, so there is no common cathode or common cathode. Yang"s argument. Never connect the common terminal COM directly to the ground, and display it by controlling the drive terminal to connect to a high level. This will easily damage the LCD screen after working for a long time.

Statically driven segment screens can be directly driven if the number of IO ports of the single-chip microcomputer is sufficient. Dynamically driven screens require time-division scanning mode driving, and the bias waveform is not easy to simulate, so theoretically it cannot be driven directly by the single-chip microcomputer. of. Some of the analog bias voltage generated by resistor divider can also be directly driven by a single-chip microcomputer. However, the programming is too complicated and the display effect is not ideal. It is best to use a dedicated segment code LCD driver chip. The most commonly used is HT1621, which is low in price. 3-wire SPI serial port driver, programming is also simple.

Previously LCDs that operated in extreme cold or extreme heat required bulky built-in heaters and coolers in order to ensure performance. However, the proprietary liquid crystal used in the InfoVue Extreme Temp series eliminates the need for coolers and allowing Lumex to use low-power heaters. This makes the InfoVue Extreme Temp LCDs better able to perform in more hostile conditions.

InfoVue Extreme Temp LCD displays provide reliable, consistent high-quality performance from -40°C to +85°C , making Lumex LCD technology a viable solution for a growing number of applications. The growing demand for high performance LCD technology can be seen in military, freezer, gas pumps/fuel meters, non-automotive transportation, and nonclimate controlled facility applications.

Extreme Temp LCDs also offer significant visual performance benefits, providing full graphic capability and daylight visibility. When combined with LED backlighting technology, a wide range of color options are available. All InfoVue Extreme Temp LCDs are available with either a monochromatic screen with any color of LED backlight, or select negative image option with mono colored pixels and a black background.

InfoVue Extreme Temp LCD displays can be produced in sizes ranging from 8 x 1 to 20 x 4 character displays and 128 x 64 to 320 x 240 pixel graphic displays.

There are several industrial applications that require LCD displays to operate in extreme temperature environments such as in military, food processing, gas/fuel pumps, medical, manufacturing, and non-climate-controlled facilities, among others. Take note that typical monitors can only be used in environments with 0�C~50�C temperature range. UV exposure, moisture, and humidity also affect the overall temperature within a specific environment. iTech Company offers a range of LCD monitors that can function properly in a wide working temperature range from -30℃ to +80℃. These products are already proven and tested to maintain its original luminance under such temperatures.

While the range of operating temperature is a relevant consideration for the device to withstand extreme hot or cold environments, other factors must also be taken into account for the overall performance of the device. These includethe clarity of the image, environmental protection, LED backlighting, quality of the components, andvarious options available.

iTech Company’s products are equipped with these useful features to deliver great performance even in harsh working conditions. These are available in different monitor sizes and resolutions. It offers superior image quality with wide viewing angle. Some of the optional features include the touch screen functionality for interactive application and the level of brightness to ensure that the screen content is highly visible in all lighting conditions. Moreover, these wide operating temperature LCD displays are available in different types including open frame, panel mount, andchassis mount.

According to the popularization of display applications, the TFT LCD display have to adapt the Extreme Temperature and Different EnviromentsFIRST Components/ Evervision’s Wide Temperature TFT LCD Series are designed specifically for operation in harsh environments and under changing temperature. Furthermore, we have a solution for low temperature environment. Let’s find out!

The LCD in cold temperatures may cause misreading because of the response time of LC (physical characteristics). It will turn slowly and make the screen overlap. Additionally, it may cause permanent damage to the display if LCD panel left in such conditions for extended periods.

Fortunately, ​there are a number of solution such as specialty liquid crytals (LCs) and other materials for application requiring the use of a display in extreme environmental condition. FIRST Components/ Evervision Wide Temperature TFT LCD Display overcome these challenges through the use of applied heating and cooling solutions.​

At present, the common TFT LCD modules on the market have a wide range of definitions of -20~70 °C. For industrial control, vehicle and outdoor products, this temperature range always can’t meet the needs of such usage.

Fortunately, our Wide Temperature TFT LCD Display can work under extreme environments with operating temperatures ranging from -30°C to +80°C, and the maximum for some models can reach 85°C. These TFT displays are full color LCDs available in industry standard sizes rangingfrom 3.5″ to 15.6” TFT LCD display and widely used in cold or heat condition throughout the world.

In low temperature environment, liquid crystals will be condensed and cause the screen blanked out. In order to prevent the problem, you may need to add a Glass Heater to your TFT LCD Module.

It can optimize the LCD visual clarity and operate normally by heating up to the right temperature. With Glass Heater, displays and touch screens remain usable in cold, high humidity/low dew point environments and locations where ambient temperature can change quickly.

That is the reason the LCD looks lighter (blur) when the temperature drops, while the background appears (ghosting) when the temperature increases. There are some ways to improve the contrast with the temperature change, such as choosing the liquid crystal fluid changes less with temperature (Flat Fluid), or adding heater at the low temperature. Below, we will focus on using electronics to compensate the temperature change to increase the contrast.

For most applications this variation in contrast is tolerable over the “normal” temperature range of 0°C to +50°C. Most LCD modules are available with an extended temperature range option which allows the display to operate from -20°C to +70°C. The changes in LCD contrast temperature compensation are NOT usually tolerable over this wide a range of temperatures, which means a way of adjusting the contrast voltage as the ambient temperature changes should be provided.

First of all, we want to optimize the contrast at room temperature, this is normally done during product development on the prototype unit. A LCD contrast potentiometer is connected between the appropriate power supply rails (Vdd and Vss for single supply, and Vee and Vdd for higher voltage LCD modules).  The wiper of the pot is connected to Vo (LCD bias voltage input), see Fig. 3.  The pot is adjusted to obtain the desired LCD appearance. Depending on the optimum contrast requirement, we can either leave the LCD contrast potentiometer in the design, or measure the voltage on the Vo pin and select a pair of resistors to produce this voltage in the production units.

As the temperature decreases, the LCD fluid requires a higher operating voltage in order to maintain a given optical contrast. One way to provide for this is to give the user control of the contrast. This is a simple solution but normally it is not practical.

Fig. 5 uses a current buffer whose drive current is dependent on a thermistor (negative temperature coefficient). This thermistor, RT1 should be placed as close as possible to the LCD module to sense the ambient temperature experienced by the LCD.

The Vee level is dependent on the requirements of the LCD module. Extended character displays need -7.8V on VOat 25ºC or -2.8V with respect to ground (Vss). Note that Vee and VO are measured with respect to VDD supplies to the LCD. Typically, Vee is 25% greater than VO. During development, Vee is variable to optimize contrast.
