RFI350U-AYW-DNN is a 3.5-inch diagonal IPS transmissive type 320x480 TFT LCD display module. The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now. The dimension size of this module is 54.5x83 mm, size of active area is 48.96x73.44 mm. This TFT display module uses ILI9488 driver IC which supports 8/16/18-bit MCU, 3-Line SPI interface and RGB interface + 3-SPI. This 320x480 TFT LCD module has brightness 600 cd/m2 with contrast ratio (typical value) 700:1. The module works within the temperature -20 to +70℃, storage temperature ranges from -30 to +80℃.

ER-TFTM035-6 is 320x480 dots 3.5" color tft lcd module display with ILI9488 controller and breakout board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 8080 8-bit /9-bit/16-bit /18-bit parallel ,3-wire,4-wire serial spi interface.Built-in microSD card slot, optional 3.5" 4-wire resistive touch panel with controller XPT2046 and capacitive touch panel with controller FT6236, so you can detect finger presses anywhere on the screen and doesn"t require pressing down on the screen with a stylus and has nice glossy glass cover . It"s optional for font chip, flash chip and microsd card. We offer two types connection,one is pin header and the another is ZIF connector with flat cable mounting on board by default and suggested. Lanscape mode is also available.

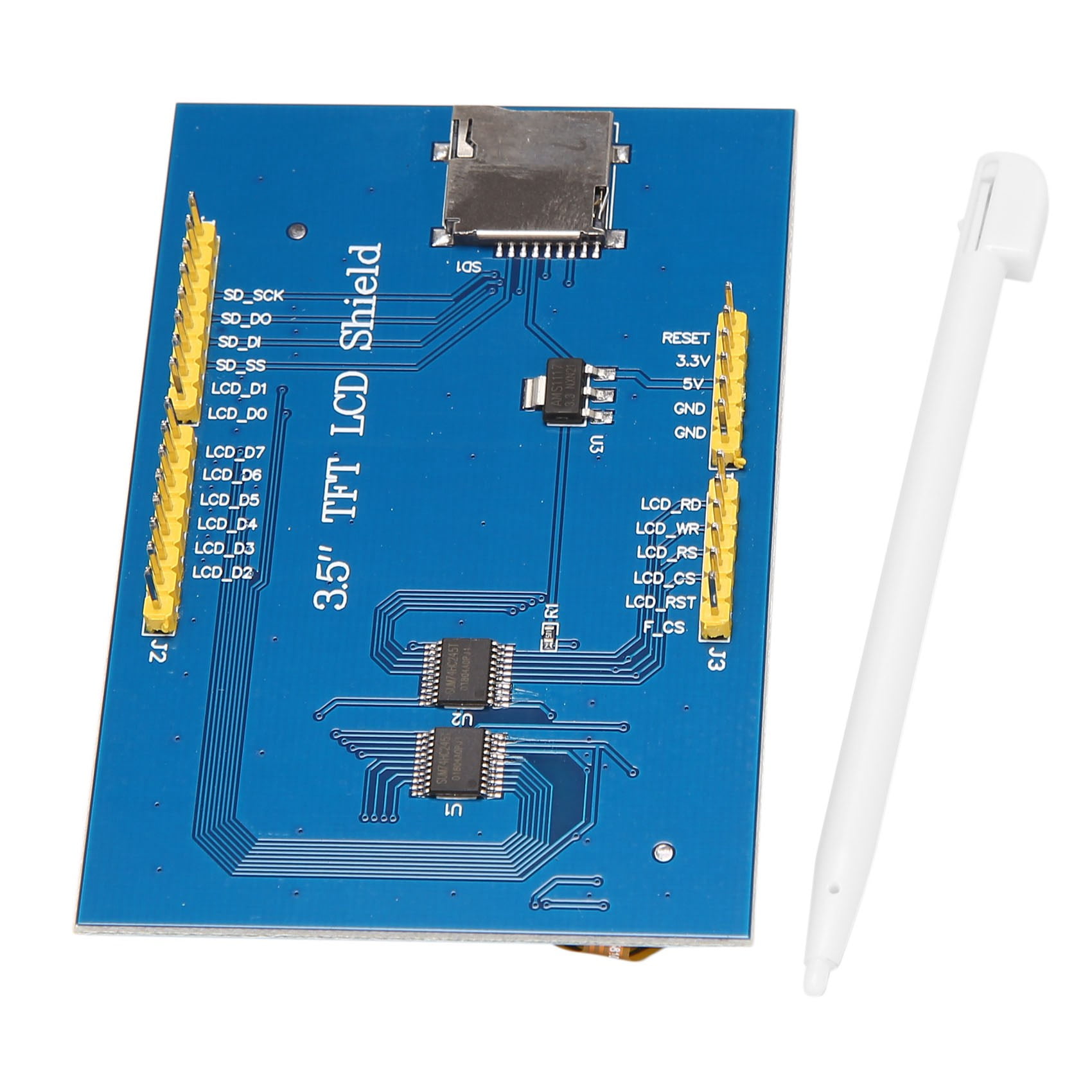

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 3.5"TFT Touch Shield with Libraries, EXxamples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

SWI offers a wide product range of small to medium sizes TFT display modules in sizes ranging from 0.96” through 10.1”, no matter it is by engineering a custom display module, or by implementing a standard display from our wide selection of technologies, including being integrated with touch sensors and/or cover lenses. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, IPS display and wide operating temperatures of -20°C to +70°C or -30°C to +80°C. The interface options are MCU / RGB / SPI / UART / 8080 / LVDS. We also offer customization of backlight or/and FPC. Our products have been applied in a wide range of industries including E-cigarettes, wearable deivices, energy meter equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial control.

With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.

This TFT display is big (3.5" diagonal) bright and colorful! 480x320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128x64 display.

This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller. The display can be used in two modes: 8-bit or SPI. For 8-bit mode, you"ll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than 8-bit mode.

NMLCD-35320480-CTP-CLBis a colour active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a colour TFT-LCD panel, driver IC, FPC and a back light unit and with a Touch Panel (TP)，with a Cover Lens Bezel(CLB). The module display area contains 320 x 480 pixels. This product accords with RoHS environmental criterion.

Shenzhen SLS Industrial Co.,ltd established in 2003, is a professional LCD module manufacturer and solution provider. We have 1 full-auto COG assembly line, 2 semi-auto assembly line, backlight assembly line, no dust TP bonding line and manufacturing tech support, we can provide unique, innovative and cost effective LCD module development and manufacturing. Our product range includes: middle-small size TFT LCD, industrial capacitive touch panel... Our LCD products have been widely used in communications, GPS, Equipment, electronic audio-visual, instrumentation, household appliances, PDA and other industries.

The infrared touch screen is equipped with a circuit board frame in front of the display. The circuit board arranges infrared emitting tubes and infrared receiving tubes on the four sides of the screen to form a horizontal and vertical infrared matrix. When the user touches the screen, the finger will block the horizontal and vertical infrared rays passing through the position, so the position of the touch point on the screen can be determined. Any touch object can change the infrared ray on the contact to realize the touch screen operation. The infrared touch screen is not subject to current, voltage and electrostatic interference, and is suitable for some harsh environmental conditions. Its main advantages are low price, easy installation, no need for card or any other controller, and it can be applied to computers of all levels.

The main part of the resistive touch screen is a resistive thin film screen that fits well with the display surface. Two layers of OTI transparent oxide metal conductive layers are coated on the reinforced glass surface. Pressure sensing is used for control. When a finger touches the screen. The two conductive layers contact at the touch point, and the resistance changes. Signals are generated in the X and Y directions and then transmitted to the touch screen controller. The controller detects this contact and calculates the position of (x, y) and then operates according to the way of simulating the mouse. The resistive touch screen is not afraid of dust, water and dirt, and can work in harsh environments. However, because the outer layer of the composite film is made of plastic material, the explosion resistance is poor, and the service life is affected to a certain extent.

After snapping the board, case, usb adapters for wifi and wireless keyboard, plugging in hdmi and power, nothing happened. A red light on the board lit up, but nothing else. I went online and after some googling, I found out that if no OS is recognized, nothing will display on your TV/monitor. I unplugged the power, took out the SD card and re-inserted, and the system booted into NOOBS.

LM035GV09NS is a 3.5 inch IPS with BLANVIEW tech. The model is featured with SPI+18BIT RGB interface; The module is sunlight readable with low consumption. It can be used in embedded systems, POS， industrial devices, security, and hand-held equipment which require display in high quality and colorful images.

3.5 inch 320x480 industrial classTFT LCD Module& 4-wire resistance Touch Screen; Brightness 300cd/m2; LED backlight; RGB Color 65k; View Area 49mm*73.4mm; Visual Angel 70/70/50/70; Working life 20000 hours.

32bit Cortex-M4 200Hz CPU; CPLD EPM240 TFT-LCD Controller; 128MB (Or 1GB) Flash Memory; USB port (U-Disk) downloading; Toolbox Software for GUI design; Simple & Powerful HEX Instruction.

Basic Function: Touch screen Control / Display image / Display Text / Display Curve / Read & Write Data / Play Video & Audio. For Various Industry Field.

Kingtech IPS/ free/all/ wide viewing angle 3.5 inch 320x480 TFT LCD display is our leading TFT LCD module product. Kingtech is the only distributor of the IPS LCD panel, so we have the TFT LCD module price and resource advantage. The 3.5 inch TFT LCD display has a resistive touch and capacitive touch. The PINOUT is 40PINs, most customers like to use it.

Kingtech Diaplay, as one of LCD display panel manufacturers, has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard 3.5 TFT LCD module displays and satisfying one-stop services. Any requests will be welcomed.
