A controller board is a piece in an electrical circuit that interfaces with a peripheral object by connecting the computer to it. The connection may be with other computer parts, such as the memory controller, or with an external device, like a mouse, that acts as a peripheral controller for an operation of the original device.

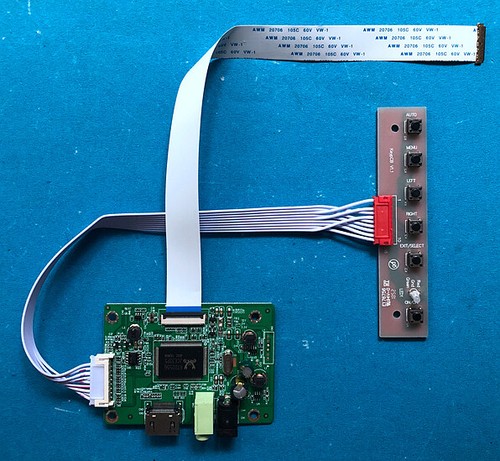

The LCD controller board is often called the Analog/Digital (A/D) board. As a type of hardware processor, it allows for various video source inputs to be connected, selected, and displayed on the LCD screen. It does this by converting the different video input signals into a format manageable by the LCD panel.

In conjunction with the LCD controller, the LCD driver is a form of software that is the interface of and dependent on the controller piece. Combined, the two form an LCD controller driver board. As the controller connects the computer to the operating system (OS), the driver facilitates that communication. Though there is typically just one display controller per LCD, there can be added drivers to extend the reach of the drive to further segments of the LCD.

To generalize the process, the LCD controller/driver adjusts the input signal, scaling resolution if needed, and then outputs the signal for the LCD monitor to use. Some of these output interfaces are low-voltage differential signaling (LVDS), SPI, I2C, and Parallel.

In most LCD controller/driver boards, there are two other input/output systems. Both these systems, however, are two-way pathways. One involves controlling and monitoring options, such as controls for brightness, image, and color using the on-screen display (OSD) control panel. The other is for communication via connections like Ethernet, Bluetooth, or IP.

With modern developments, touch screen devices have become much more prominent, and so the touchscreen controller has as well. There are two types of touchscreens: the resistive one that measures pressure and the capacitive one that reads touch. In both of these, there are sensors that detect the touch signal which then transmit the signal data to the controller. The controller then processes the command for the OS.

To delve deeper into the details, consider the previously mentioned input signals. There are a variety of signals that LCD technology processes, such as VGA, HDMI, DVI, and DisplayPort. These computer display standards vary in format and characteristics like aspect ratio, display size, display resolution, color depth, and refresh rate. One of the biggest differences between these standards is their usage of analog signals or digital signals.

The VGA, short for video graphic array, standard is one of the most popular analog-based technologies. In recent years, however, the VGA interface has been overshadowed by interfaces like high definition multimedia interfaces, better known as HDMI, which has become a de facto standard for digital signal transmissions.

The HDMI is a combination of digital audio and digital video transmission. There are many HDMI connectors, such as the standard, dual-link, and micro. These connectors are what the input signal travels through to reach the LCD controller and to direct what to display.

When crossing interfaces, we use adapters to bridge the differences between signals. The DVI VGA adapter is relatively inexpensive due to how compatible the two are. The HDMI is also very compatible with the DVI, making the HDMI DVI adapter quite simple.

The VGA to HDMI adapter, however, must overcome greater differences, as they are not naturally as compatible as each were with DVI. Not only are there differences in the analog/digital signals, but also the VGA only uses video interface, whereas the HDMI uses both audio and video. A cable and an adapter are needed to connect the two devices.

And last from the list of examples of input signals is the DisplayPort. It is similar to HDMI in its purpose to replace outdated VGA and DVI as well as its transmission of audio and video through its interface. The DisplayPort does not have as much variation in cables and connectors as the HDMI, with only one cable and two types of connectors. From the DisplayPort, there is a growing technology called the embedded DisplayPort interface, or eDP interface. LCD manufacturers have begun to gravitate towards this interface due to its fewer connections, smaller size, and ability to quickly transmit high quality displays.

Bringing the subject back to LCD controllers, with the various types of computer display standards, the video signal inputs can be a challenge to accommodate and translate for the LCD panel, but with the help of adapters and the growth of these standard types, displays continue to become faster and develop with greater resolutions.

To support (2) standard input channels, multiple input types per channel, and multiple windows in an embedded application, the VP13 offers a comprehensive approach for automatic detection, conversion, and windowing of many video formats.  Each input channel can have multiple, prioritized video input modes associated with it.  A mode consists of the input type (DVI, VGA. CVBS, etc), video timing, and associated window parameters.

Each input channel has a mode selection subsystem to scan for defined modes per a user-defined methodology. The VP13 can scan defined modes associated with a specific input type (such as VGA), all input types on that channel, or a specific mode identifier.  At power up, each channel’s mode selection subsystem initiates an automated scan. Once a mode is matched (either exactly or within pre-defined limits), that video input is displayed in its window(s) per the mode’s associated window parameters (input area-of-interest, window size, window location).

6.Special share LCD can be customized,such as bar,square and round LCD display can be customized or any other special shaped display is available to custom.

As a TFT LCD manufacturer, we import mother glass from brands including BOE, INNOLUX, and HANSTAR, Century etc., then cut into small size in house, to assemble with in house produced LCD backlight by semi-automatic and fully-automatic equipment. Those processes contain COF(chip-on-glass), FOG(Flex on Glass) assembling, Backlight design and production, FPC design and production. So our experienced engineers have ability to custom the characters of the TFT LCD screen according to customer demands, LCD panel shape also can custom if you can pay glass mask fee, we can custom high brightness TFT LCD, Flex cable, Interface, with touch and control board are all available.

All the accessories listed below tier pricing need to pay.We won"t deliver until you select. Power adaptor should be 12V/2000mA in output and center pin for positive voltage and the outer shield for negative voltage.The temperature for controller RTD2660 would increase during working.That"s normal phenomenon,not quality problem.

ER-TFT090-3-3246 is IPS 9" tft lcd display with HDMI,VGA,Video signal driver board,1024x600 pixels,optional 4-wire resistive touch panel with USB driver board and cable,optional capacitive touch panel with USB controller board and cable. It"s superior display quality,wide view angle.

This article is about the computer display standard. For the 640×480 resolution, see display resolution. For the 15-pin video connector, see VGA connector. For a full list of display resolutions, see graphics display resolution. For other uses, see VGA (disambiguation).

Video Graphics Array (VGA) is a video display controller and accompanying de facto graphics standard, first introduced with the IBM PS/2 line of computers in 1987,PC industry within three years.computer display standard, the 15-pin D-subminiature VGA connector, or the 640×480 resolution characteristic of the VGA hardware.

VGA was the last IBM graphics standard to which the majority of PC clone manufacturers conformed, making it the lowest common denominator that virtually all post-1990 PC graphics hardware can be expected to implement.

IBM intended to supersede VGA with the Extended Graphics Array (XGA) standard, but failed.Super VGA,graphics processing units which, in addition to their proprietary interfaces and capabilities, continue to implement common VGA graphics modes and interfaces to the present day.

Unlike the graphics adapters that preceded it (MDA, CGA, EGA and many third-party options) there was initially no discrete VGA card released by IBM. The first commercial implementation of VGA was a built-in component of the IBM PS/2, in which it was accompanied by 256KB of video RAM, and a new DE-15 connector replacing the DE-9 used by previous graphics adapters.

The VGA was a single chip implementing the entirety of a video display controller, rather than the many discrete components and ICs of the graphics adapters that had preceded it. The term "array" rather than "adapter" in the name denoted that it was not a complete independent expansion device, but a single component that could be integrated into a system.

The VGA required only video memory, timing crystals and an external RAMDAC,PC, PC/XT, and PC AT – which required a separate display adapter installed in a slot in order to connect a monitor.

The other modes defaulted to standard EGA or CGA compatible palettes and instructions, but still permitted remapping of the palette with VGA-specific commands.

As the VGA began to be cloned in great quantities by manufacturers who added ever-increasing capabilities, its 640×480, 16-color mode became the de facto lowest common denominator of graphics cards. By the mid 1990s, a 640×480×16 graphics mode using the VGA memory and register specifications was expected by operating systems such as Windows 95 and OS/2 Warp 3.0, which provided no support for lower resolutions or bit depths, or support for other memory or register layouts without additional drivers. Well into the 2000s, even after the VESA standard for graphics cards became commonplace, the "VGA" graphics mode remained a compatibility option for PC operating systems.

As with the pixel-based graphics modes, additional text modes are possible by programming the VGA correctly, with an overall maximum of about 100×80 cells and an active area spanning about 88×64 cells.

Unlike the cards that preceded it, which used binary TTL signals to interface with a monitor (or composite, in the case of the CGA), the VGA introduced a video interface using pure analog RGB signals, 0.7 volts peak-to-peak max. In conjunction with an 18-bit RAMDAC this produced a color gamut of 262,144 colors. This gamut has come to be well known as the sRGB color space (but it is most commonly divided into 16,777,216 colors using a 24-bit RAMDAC or 8-bits per primary color).

The intended standard value for the horizontal frequency of VGA"s 640×480 mode is exactly double the value used in the NTSC-M video system, as this made it much easier to offer optional TV-out solutions or external VGA-to-TV converter boxes at the time of VGA"s development. It is also at least nominally twice that of CGA, which also supported composite monitors.

All derived VGA timings (i.e. those which use the master 25.175 and 28.322 MHz crystals and, to a lesser extent, the nominal 31.469 kHz line rate) can be varied by software that bypasses the VGA firmware interface and communicates directly with the VGA hardware, as many MS-DOS based games did. However, only the standard modes, or modes that at least use almost exactly the same H-sync and V-sync timings as one of the standard modes, can be expected to work with the original late-1980s and early-1990s VGA monitors. The use of other timings may in fact damage such monitors and thus was usually avoided by software publishers.

Third-party "multisync" CRT monitors were more flexible, and in combination with "super EGA", VGA, and later SVGA graphics cards using extended modes, could display a much wider range of resolutions and refresh rates at arbitrary sync frequencies and pixel clock rates.

For the most common VGA mode (640×480, 60 Hz, non-interlaced), the horizontal timings can be found in the HP Super VGA Display Installation Guide and in other places.

The need for such a low-quality, universally compatible fallback has diminished since the turn of the millennium, as VGA-signalling-standard screens or adaptors unable to show anything beyond the original resolutions have become increasingly rare.

320×200 at 70 Hz was the most common mode for VGA-era PC games, with pixel-doubling and line-doubling performed in hardware to present a 640x400 at 70 Hz signal to the monitor.

Because VGA uses low-voltage analog signals, signal degradation becomes a factor with low-quality or overly long cables. Solutions include shielded cables, cables that include a separate internal coaxial cable for each color signal, and "broken out" cables utilizing a separate coaxial cable with a BNC connector for each color signal.

BNC breakout cables typically use five connectors, one each for Red, Green, Blue, Horizontal Sync, and Vertical Sync, and do not include the other signal lines of the VGA interface. With BNC, the coaxial wires are fully shielded end-to-end and through the interconnect so that virtually no crosstalk and very little external interference can occur.

The VGA color system uses register-based palettes to map colors in various bit depths to its 18-bit output gamut. It is backward compatible with the EGA and CGA adapters, but supports extra bit depth for the palette when in these modes.

For instance, when in EGA 16-color modes, VGA offers 16 palette registers, and in 256-color modes, it offers 256 registers.3×6 bit RGB value, selecting a color from the 18-bit gamut of the DAC.

The video memory of the VGA is mapped to the PC"s memory via a window in the range between segments 0xA0000 and 0xBFFFF in the PC"s real mode address space (A000:0000 and B000:FFFF in segment:offset notation). Typically, these starting segments are:

Due to the use of different address mappings for different modes, it is possible to have a monochrome adapter (i.e. MDA or Hercules) and a color adapter such as the VGA, EGA, or CGA installed in the same machine.

"Unchaining" the 256 KB VGA memory into four separate "planes" makes VGA"s 256 KB of RAM available in 256-color modes. There is a trade-off for extra complexity and performance loss in some types of graphics operations, but this is mitigated by other operations becoming faster in certain situations:

The video adapter could assist in copying video RAM regions, which was sometimes faster than doing this with the relatively slow CPU-to-VGA interface.

The use of multiple video pages in hardware allowed double buffering, triple buffering or split screens, which, while available in VGA"s 320×200 16-color mode, was not possible using stock Mode 13h.

The highest resolution modes were only used in special, opt-in cases rather than as standard, especially where high line counts were involved. Standard VGA monitors had a fixed line scan (H-scan) rate – "multisync" monitors being, at the time, expensive rarities – and so the vertical/frame (V-scan) refresh rate had to be reduced in order to accommodate them, which increased visible flicker and thus eye strain. For example, the highest 800×600 mode, being otherwise based on the matching SVGA resolution (with 628 total lines), reduced the refresh rate from 60 Hz to about 50 Hz (and 832×624, the theoretical maximum resolution achievable with 256kb at 16 colors, would have reduced it to about 48 Hz, barely higher than the rate at which XGA monitors employed a double-frequency interlacing technique to mitigate full-frame flicker).

These modes were also outright incompatible with some monitors, producing display problems such as picture detail disappearing into overscan (especially in the horizontal dimension), vertical roll, poor horizontal sync or even a complete lack of picture depending on the exact mode attempted. Due to these potential issues, most VGA tweaks used in commercial products were limited to more standards-compliant, "monitor-safe" combinations, such as 320×240 (square pixels, three video pages, 60 Hz), 320×400 (double resolution, two video pages, 70 Hz), and 360×480 (highest resolution compatible with both standard VGA monitors and cards, one video page, 60 Hz) in 256 colors, or double the horizontal resolution in 16-color mode.
