Customers in many different industries have chosen this full color graphic TFT display module for its stunning 320x480 pixel 3.5-inch diagonal active area.

ER-TFTM035-6 is 320x480 dots 3.5" color tft lcd module display with ILI9488 controller and breakout board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 8080 8-bit /9-bit/16-bit /18-bit parallel ,3-wire,4-wire serial spi interface.Built-in microSD card slot, optional 3.5" 4-wire resistive touch panel with controller XPT2046 and capacitive touch panel with controller FT6236, so you can detect finger presses anywhere on the screen and doesn"t require pressing down on the screen with a stylus and has nice glossy glass cover . It"s optional for font chip, flash chip and microsd card. We offer two types connection,one is pin header and the another is ZIF connector with flat cable mounting on board by default and suggested. Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 3.5"TFT Touch Shield with Libraries, EXxamples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

RFI350U-AYW-DNN is a 3.5-inch diagonal IPS transmissive type 320x480 TFT LCD display module. The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now. The dimension size of this module is 54.5x83 mm, size of active area is 48.96x73.44 mm. This TFT display module uses ILI9488 driver IC which supports 8/16/18-bit MCU, 3-Line SPI interface and RGB interface + 3-SPI. This 320x480 TFT LCD module has brightness 600 cd/m2 with contrast ratio (typical value) 700:1. The module works within the temperature -20 to +70℃, storage temperature ranges from -30 to +80℃.

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller"s listing for full details.See all condition definitionsopens in a new window or tab

3.5inch RPi LCD (A) and 3.5inch RPi LCD (B) are hardware compatible with each other (uses different driver), and can be mutually substituted in most cases. (A) for low cost ver. while (B) for IPS ver. with better displaying.

Why the LCD doesn"t work with my Raspbian?To use the LCD with the Raspberry Pi official image, driver (SPI touch interface only) should be installed first. Please refer to the user manual.

However, for the first testing, you may want to use our image directly (if provided).Why the LCD still doesn"t work with the Waveshare provided image?Make sure the hardware connection is correct and connects fine.

Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They"re usually some poor copies of our early hardware revisions, and comes with none support service.

3.5inch RPi LCD (A) and 3.5inch RPi LCD (B) are hardware compatible with each other (uses different driver), and can be mutually substituted in most cases. (A) for low cost ver. while (B) for IPS ver. with better displaying.

Why the LCD doesn"t work with my Raspbian?To use the LCD with the Raspberry Pi official image, driver (SPI touch interface only) should be installed first. Please refer to the user manual.

However, for the first testing, you may want to use our image directly (if provided).Why the LCD still doesn"t work with the Waveshare provided image?Make sure the hardware connection is correct and connects fine.

Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They"re usually some poor copies of our early hardware revisions, and comes with none support service.

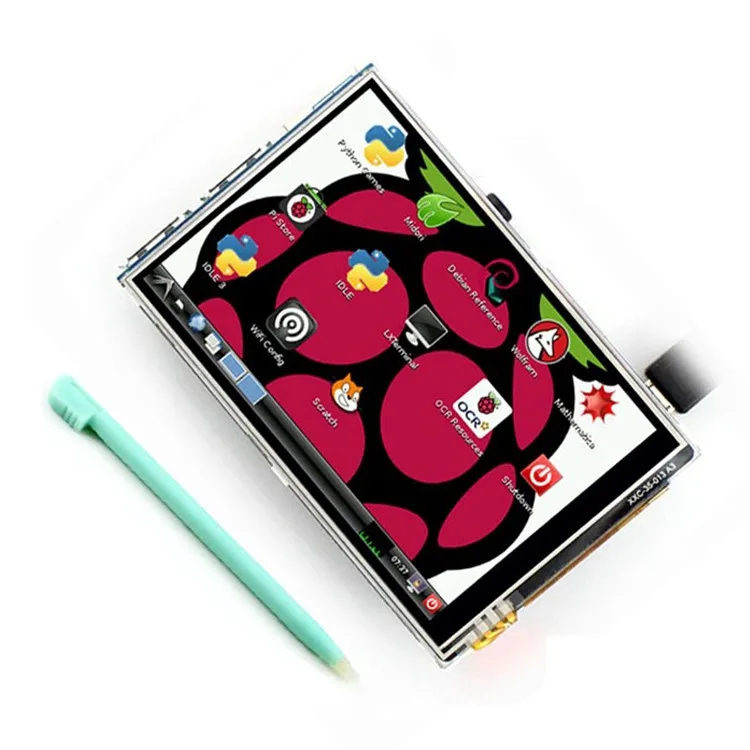

It is the cutest display for the Raspberry Pi. It features a 3.5" display with 480x320 16-bit color pixels and a resistive touch overlay. It"s designed to fit nicely not only to the Pi Model A or B but also works perfectly fine with the Model B+/2B/3B/4B.

*When working with Raspberry Pi 4, for the system image of Raspberry Pi after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.

The essence of the touch screen is a sensor. At present, according to the type of sensor, the touch screen is roughly divided into four types: infrared type, resistance type, surface acoustic wave type and capacitive type.

The infrared touch screen is equipped with a circuit board frame in front of the display. The circuit board arranges infrared emitting tubes and infrared receiving tubes on the four sides of the screen to form a horizontal and vertical infrared matrix. When the user touches the screen, the finger will block the horizontal and vertical infrared rays passing through the position, so the position of the touch point on the screen can be determined. Any touch object can change the infrared ray on the contact to realize the touch screen operation. The infrared touch screen is not subject to current, voltage and electrostatic interference, and is suitable for some harsh environmental conditions. Its main advantages are low price, easy installation, no need for card or any other controller, and it can be applied to computers of all levels.

The main part of the resistive touch screen is a resistive thin film screen that fits well with the display surface. Two layers of OTI transparent oxide metal conductive layers are coated on the reinforced glass surface. Pressure sensing is used for control. When a finger touches the screen. The two conductive layers contact at the touch point, and the resistance changes. Signals are generated in the X and Y directions and then transmitted to the touch screen controller. The controller detects this contact and calculates the position of (x, y) and then operates according to the way of simulating the mouse. The resistive touch screen is not afraid of dust, water and dirt, and can work in harsh environments. However, because the outer layer of the composite film is made of plastic material, the explosion resistance is poor, and the service life is affected to a certain extent.

Surface acoustic wave is a kind of mechanical wave propagating along the surface of medium. An ultrasonic transducer is mounted on the corner of the touch screen. It can send a high-frequency sound wave across the screen surface. When the finger touches the screen, the sound wave on the contact is blocked, thereby determining the coordinate position. The surface acoustic wave touch screen is not affected by environmental factors such as temperature and humidity. It has high resolution, excellent scratch resistance, long service life, high light transmittance, and can maintain clear and bright image quality. It is most suitable for use in public places. However, dust, water and dirt will seriously affect its performance, which requires frequent maintenance to keep the screen clean.

This touch screen works by using the current induction of the human body. A layer of transparent special metal conductive material is pasted on the glass surface. When a conductive object touches it, the capacitance of the contact will be changed, so that the touched position can be detected. But there is no response when touched by a gloved hand or a hand-held non-conductive object because a more insulating medium is added. The capacitive touch screen can well sense light and fast touch, is scratch resistant, and is not afraid of dust, water and dirt. It is suitable for use in harsh environments. However, because the capacitance varies with temperature, humidity or environmental electric field, its stability is poor, its resolution is low, and it is easy to drift.
