hdmi gpio 5-inch 800x480 tft lcd display price

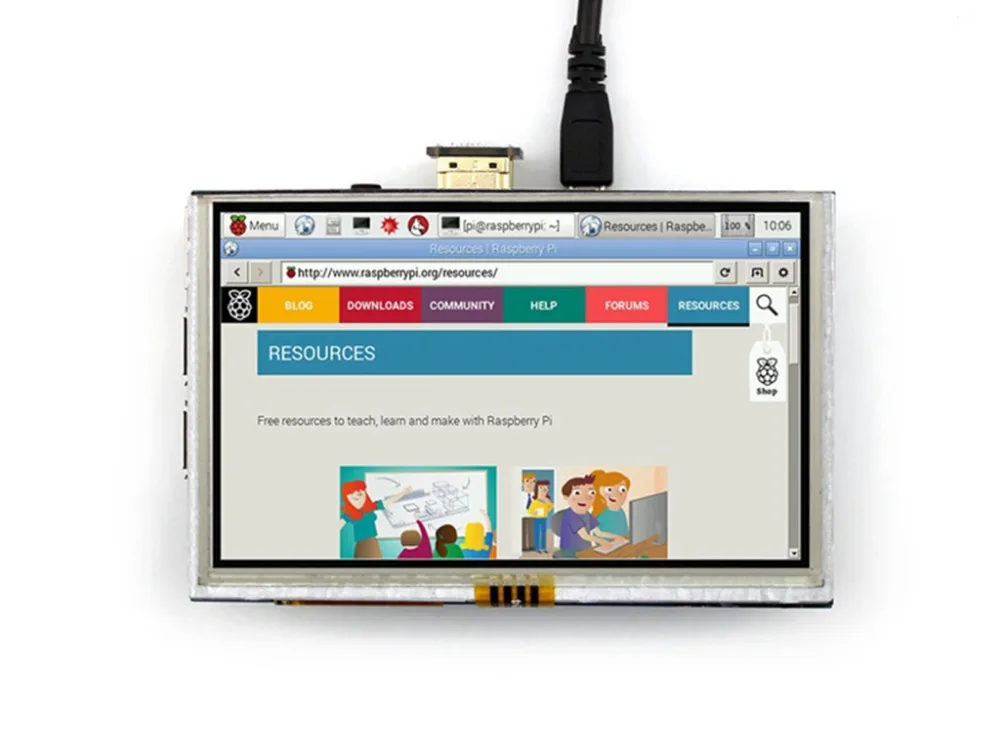

This is a 5 inch mini HDMI resistive touch screen with 800*480 resolutionfor Raspberry Pi, the high resolution will provide a large viewing screen for Raspberry Pi. Compared with another type of 5-inch display for Raspberry Pi, the backlight of this 5-inch display can be controlled by Raspberry Pi GPIO pin 11. Generally, the backlight is on, then input a high level, and it will turn off. The Pin 11 control a MOS tube switch on or off, the MOS tube switch will enable and disable the EN end of the backlight power IC. This design makes it convenient to control the backlight when we put the display into a product and safe power at the same time.

Now we have this 5-inch TFT display with a touch screen that can provide a high-resolution picture and a large viewing screen for your Raspberry Pi. The display supports any revision of Raspberry Pi and works perfectly for Raspberry Pi B+/ 2B/ 3B. It is the low power consumption for the backlight of the screen. The high 800 x 480 resolution can give you a full-color experience, the touch screen allows users to play easily.

desertcart is the best online shopping platform where you can buy HDMI GPIO 5-Inch 800x480 TFT LCD Display with Touch Screen Monitor Display for Raspberry Pi from renowned brand(s). desertcart delivers the most unique and largest selection of products from across the world especially from the US, UK and India at best prices and the fastest delivery time.

desertcart ships the HDMI GPIO 5-Inch 800x480 TFT LCD Display with Touch Screen Monitor Display for Raspberry Pi to and more cities in Bahamas. Get unlimited free shipping in 164+ countries with desertcart Plus membership. We can deliver the HDMI GPIO 5-Inch 800x480 TFT LCD Display with Touch Screen Monitor Display for Raspberry Pi speedily without the hassle of shipping, customs or duties.

Yes, it is absolutely safe to buy HDMI GPIO 5-Inch 800x480 TFT LCD Display with Touch Screen Monitor Display for Raspberry Pi from desertcart, which is a 100% legitimate site operating in 164 countries. Since 2014, desertcart has been delivering a wide range of products to customers and fulfilling their desires. You will find several positive reviews by desertcart customers on portals like Trustpilot, etc. The website uses an HTTPS system to safeguard all customers and protect financial details and transactions done online. The company uses the latest upgraded technologies and software systems to ensure a fair and safe shopping experience for all customers. Your details are highly secure and guarded by the company using encryption and other latest softwares and technologies.

desertcart is the best online shopping platform where you can buy HDMI GPIO 5-Inch 800x480 TFT LCD Display with Touch Screen Monitor Display for Raspberry Pi from renowned brand(s). desertcart delivers the most unique and largest selection of products from across the world especially from the US, UK and India at best prices and the fastest delivery time.

desertcart ships the HDMI GPIO 5-Inch 800x480 TFT LCD Display with Touch Screen Monitor Display for Raspberry Pi to and more cities in Bahamas. Get unlimited free shipping in 164+ countries with desertcart Plus membership. We can deliver the HDMI GPIO 5-Inch 800x480 TFT LCD Display with Touch Screen Monitor Display for Raspberry Pi speedily without the hassle of shipping, customs or duties.

Yes, it is absolutely safe to buy HDMI GPIO 5-Inch 800x480 TFT LCD Display with Touch Screen Monitor Display for Raspberry Pi from desertcart, which is a 100% legitimate site operating in 164 countries. Since 2014, desertcart has been delivering a wide range of products to customers and fulfilling their desires. You will find several positive reviews by desertcart customers on portals like Trustpilot, etc. The website uses an HTTPS system to safeguard all customers and protect financial details and transactions done online. The company uses the latest upgraded technologies and software systems to ensure a fair and safe shopping experience for all customers. Your details are highly secure and guarded by the company using encryption and other latest softwares and technologies.

**********Best Quality Guranteed.*****5 inch Resistive Touch Screen designed for Raspberry Pi 3 2 model B RPI 1 b + A +, can't work with Raspberry Pi zero directly. The screen also can work with all standard HDMI device, but the touch function is just for Raspbian and Ubuntu systems.*****This HDMI raspberry pi display is with 800 x 480 resolution, we design a protective case for it, and it need you to assemble it, You could look for the below QA to download the tutorial or contact us by email to get.*****When the 5 inch monitor work with RPI, it don't need external power supply. This screen power supplied and can be touched by GPIO, display by HDMI. If it is powered by external power, there will be no touch function, and please use 5V2A power supply to power it.*****The Touch screen comes with Touch pen and protective case. The screen is resistive touch screen, which need touch pen to touch it, it is hard to touch with finger, Please kindly note.*****We provide the tuto

I recently found a discount code through SlickDeals for $10 off the Elecrow 5" HDMI Touchscreen display for the Raspberry Pi. Since the Raspberry Pi was introduced, I"ve wanted to try out one of these mini screens (touchscreen or no), but they"ve always been prohibitively expensive (usually $60+).

The display is pretty solid, and comes well packed in styrofoam with four standoffs for mounting, a cheap plastic stylus, and a male-to-male HDMI daughter-card. Getting the Pi onto the board is easy enough; I used one standoff through one of the Pi"s mounting holes (on the side with the HDMI plug), then seated the Pi directly on top of the GPIO slot on the display board, so so the HDMI ports would line up perfectly on the other side.

The Elecrow officially supports the Raspberry Pi 3 model B, but I tested it with a 2 model B as well. I didn"t try it with a B+, but the hardware layout should work, so at least the HDMI display would work correctly (not sure about the touchscreen controls). The way the hardware is laid out, you seat the Raspberry Pi directly onto a GPIO socket (it takes up the first 13 sets of GPIO pins—pins 1-26), and then there"s an included HDMI male-to-male daughtercard that slots in nicely to connect the HDMI output of the Pi to the HDMI input on the display.

There"s an extra OTG USB plug on the display if you want to give it a separate power source, but if you plug it straight into the Pi"s GPIO, it will leech off the 5V connection. As long as you have a good 2A power supply for your Pi, though, you shouldn"t have to worry about supplying independent power to the display. In my usage, I only saw the overvolt indicator every now and then (just like I do in normal usage of the Pi 3, since it uses a bit more power than a 2!).

When I first booted the Pi attached to the display, there was a large white area on the right, and only the left portion of the screen was being used by the Pi (it was only using 640x480 of the 800x480 display). To fix this, you have to set a few display options in the configuration file the Raspberry Pi reads during startup to switch certain hardware settings.

Besides being a 800x480 HDMI display, the Elecrow also has a touchscreen overlay that allows simple one-point resistive touch detection on the screen. Note that at best, resistive touch is not nearly as responsive and intuitive as capacitive touch detection, which you"re likely used to on any recent smartphone or tablet screen. But something is better than nothing, when it comes to building simple UIs for "Internet of Things" devices or other fun things.

These commands first install the touchscreen calibration utility, then configure the Pi to use the correct GPIO settings so touches can be interpreted as mouse moves/clicks by the Pi.

For ~$30 ($40 without discount), I wasn"t expecting a mind-blowing retina display with excellent glare-reducing coatings and contrast. But I do expect no dead pixels, and at least a crisp, vibrant picture when looking straight on. This screen is "good enough" in that regard, though viewing angles aren"t too great; side to side is okay, but looking down from above or up from below results in a bit of a washed out picture. Also, there is no antireflective coating on the screen, so wherever you use it, you need to be aware of nearby light sources.

So, to summarize the review: this is everything I expected out of a sub-$50 display. It"s nothing like a high-end smartphone display with capacitive touch, so if that"s what you"re expecting, you"ll have to look elsewhere. But if you just want a small display that mounts to the Pi easily and is more affordable than the Raspberry Pi Foundation"s own 7" touchscreen, this is a great buy!

5 inch Resistive Touch Screen designed for Raspberry Pi 3 2 model B RPI 1 b + A +, can"t work with Raspberry Pi zero directly. The screen also can work with all standard HDMI device, but the touch function is just for Raspbian and Ubuntu systems.

This HDMI raspberry pi display is with 800 x 480 resolution, we design a protective case for it, and it need you to assemble it, You could look for the below QA to download the tutorial or contact us by email to get.

When the 5 inch monitor work with RPI, it don"t need external power supply. This screen power supplied and can be touched by GPIO, display by HDMI. If it is powered by external power, there will be no touch function, and please use 5V2A power supply to power it.

3.5inch LCD panel description Designed for Raspberry Pi, an ideal alternative solution for monitor Supports any revision of Raspberry Pi (directly-pluggable) Driver provided (works with custom Raspbian directly) 320×480 resolution, better display Take photos by touch pen (up to 17 camera modes) Support software keyboard (system interaction without keyboard/mouse)

For smaller projects, LCD and ePaper displays are a fun way to add a visual element to your projects. With simple code and wiring, they’re great for projects that require text, menus and navigation.
