​You"re on the right track to successfully repairing your LG 65UH5500-UA! Now that you"ve identified your model, we highly recommend matching the part number on the part(s) you"re replacing to ensure compatibility. ​If you don"t see your part listed below, please try searching by your part number or contact us for help!

The Samsung QN90B QLED is the best TV with an LED panel we"ve tested. It"s an impressive TV with amazing picture quality and a great selection of gaming features. It uses a Mini LED backlight, with way more dimming zones than most LED TVs, which allows for greater control over the local dimming feature for better dark room performance, with less distracting blooming around bright objects. It also gets exceptionally bright, meaning it can handle lots of glare in a bright room.

• QNED MiniLED TVs: By combining NanoCell and miniLED technology, our QNED MiniLED televisions deliver brilliantly bright colors and a higher contrast ratio for deeper blacks. It"s the ultimate in LCD TVs.

The number of special 3D eyeglasses included with the 3D TV. Some 3D TVs omit this item to control costs. Some 3D Blu-ray players may include these glasses. Retailers may offer a "3D TV + Blu-ray" bundle that also includes the glasses. All of the 3DTVs in our Ratings require the viewer to don special eyeglasses. So-called "active" 3D sets, which require "active" battery-powered LCD shutter glasses, may come with one or more pairs, or none. Additional pairs generally cost from $50 to $150 each. Most so-called "passive" 3D TVs come with four pairs of passive polarized glasses, much like the ones used in theaters, which don"t require batteries. Additional sets cost from $10 to $30 each. You cannot use passive glasses with 3DTV that requires active glasses, and vice-versa. You also generally cannot mix active 3D glasses from one brand of TV with another"s, though TVs made in 2012 and later may share glasses. (Passive 3D glasses can be used interchangeably with any passive 3D TVs.) There are some "universal" active 3D glasses you can buy as an after-market item .

The height of the TV in inches, rounded up to the nearest 0.25-inch. Dimensions include the base and detachable speakers, important if you plan to place the TV on a stand or in an entertainment center. See "Panel size without base" if you plan to wall-mount only the display.

The width of the TV in inches, rounded up to the nearest 0.25-inch. Dimensions include the base and detachable speakers, important if you plan to place the TV on a stand or in an entertainment center. See "Panel size without base" if you plan to wall-mount only the display.

The depth of the TV in inches, rounded up to the nearest 0.25-inch. Dimensions include the base and detachable speakers, important if you plan to place the TV on a stand or in an entertainment center. See "Panel size without base" if you plan to wall-mount only the display.

Dimensions of the display panel only, not including the base, rounded up to the nearest 0.25-inch. Also see "Overall height (in.)", "Overall width (in.)", and "Overall depth (in.)".

Fixed-pixel display types such as LCDs and OLEDs have a native resolution. It sets an upper limit of how sharp images may look. Native resolution is expressed in horizontal by vertical pixels (for example: 1920x1080 for an HD display, 3840x2160 for UHD).

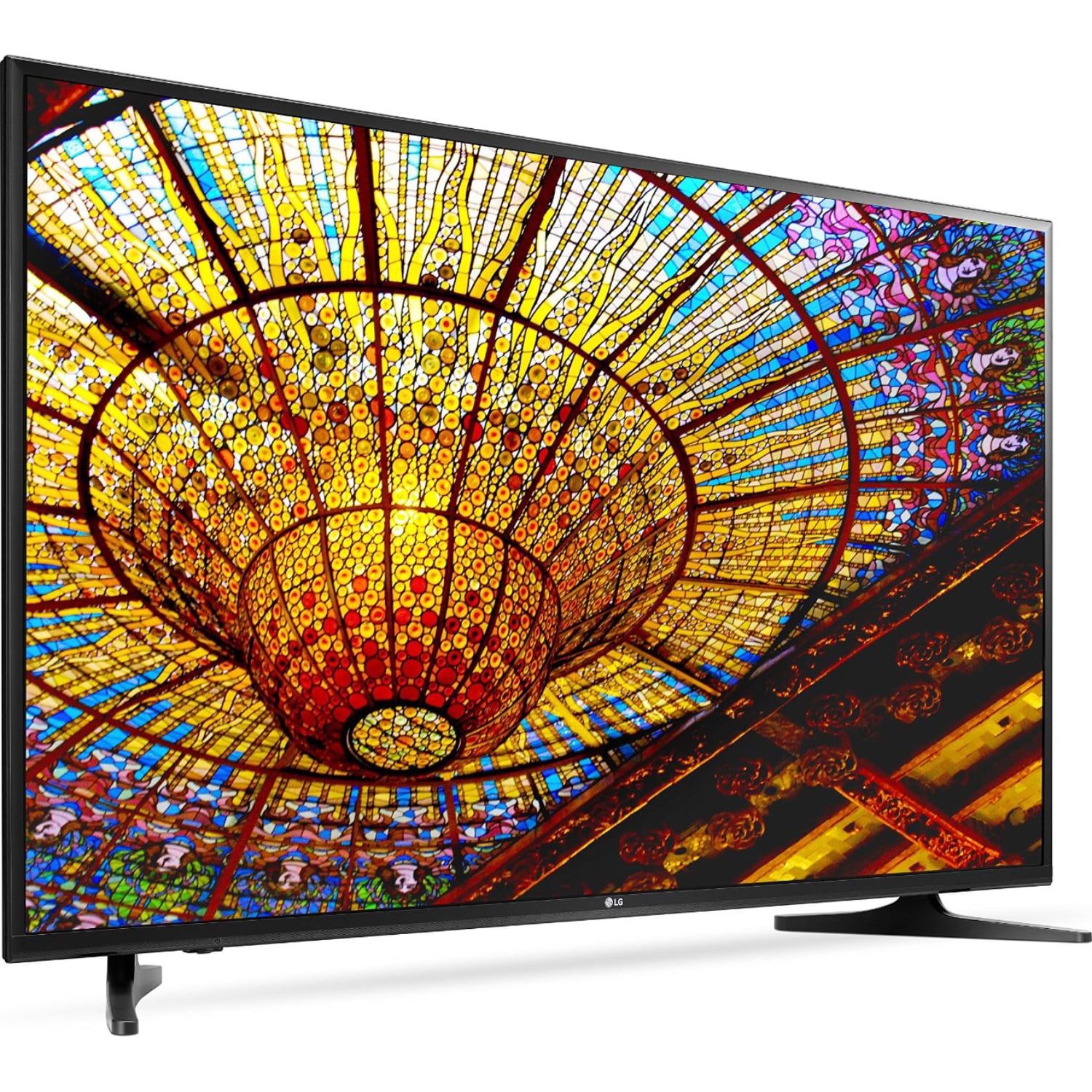

Shop for Repair, Replacement Parts and Accessories for your LG Model Number 65UH5500-UA.CUSJLH, LG 65UH5500-UA LG LG 65UH5500 including the main board, motherboard, power supply board, remote control, stand base, stand guide, stand screws, lcd/led display panel (screen replacement) and more.

Shopping for a new TV is like wading through a never-ending pool of tech jargon, display terminology, and head-spinning acronyms. It was one thing when 4K resolution landed in the homes of consumers, with TV brands touting the new UHD viewing spec as a major marketing grab. But over the last several years, the plot has only continued to thicken when it comes to three- and four-letter acronyms with the introduction of state-of-the-art lighting and screen technology. But between OLEDs, QLEDs, mini-LEDs, and now QD-OLEDs, there’s one battle of words that rests at the core of TV vocabulary: LED versus LCD.

Despite having a different acronym, LED TV is just a specific type of LCD TV, which uses a liquid crystal display (LCD) panel to control where light is displayed on your screen. These panels are typically composed of two sheets of polarizing material with a liquid crystal solution between them. When an electric current passes through the liquid, it causes the crystals to align, so that light can (or can’t) pass through. Think of it as a shutter, either allowing light to pass through or blocking it out.

Since both LED and LCD TVs are based around LCD technology, the question remains: what is the difference? Actually, it’s about what the difference was. Older LCD TVs used cold cathode fluorescent lamps (CCFLs) to provide lighting, whereas LED LCD TVs used an array of smaller, more efficient light-emitting diodes (LEDs) to illuminate the screen.

Since the technology is better, all LCD TVs now use LED lights and are colloquially considered LED TVs. For those interested, we’ll go deeper into backlighting below, or you can move onto the Local Dimming section.

Three basic illumination forms have been used in LCD TVs: CCFL backlighting, full-array LED backlighting, and LED edge lighting. Each of these illumination technologies is different from one another in important ways. Let’s dig into each.

CCFL backlighting is an older, now-abandoned form of display technology in which a series of cold cathode lamps sit across the inside of the TV behind the LCD. The lights illuminate the crystals fairly evenly, which means all regions of the picture will have similar brightness levels. This affects some aspects of picture quality, which we discuss in more detail below. Since CCFLs are larger than LED arrays, CCFL-based LCD TVs are thicker than LED-backlit LCD TVs.

Full-array backlighting swaps the outdated CCFLs for an array of LEDs spanning the back of the screen, comprising zones of LEDs that can be lit or dimmed in a process called local dimming. TVs using full-array LED backlighting to make up a healthy chunk of the high-end LED TV market, and with good reason — with more precise and even illumination, they can create better picture quality than CCFL LCD TVs were ever able to achieve, with better energy efficiency to boot.

Another form of LCD screen illumination is LED edge lighting. As the name implies, edge-lit TVs have LEDs along the edges of a screen. There are a few different configurations, including LEDs along just the bottom, LEDs on the top and bottom, LEDs left and right, and LEDs along all four edges. These different configurations result in picture quality differences, but the overall brightness capabilities still exceed what CCFL LCD TVs could achieve. While there are some drawbacks to edge lighting compared to full-array or direct backlight displays, the upshot is edge lighting that allows manufacturers to make thinner TVs that cost less to manufacture.

Local dimming is a feature of LED LCD TVs wherein the LED light source behind the LCD is dimmed and illuminated to match what the picture demands. LCDs can’t completely prevent light from passing through, even during dark scenes, so dimming the light source itself aids in creating deeper blacks and more impressive contrast in the picture. This is accomplished by selectively dimming the LEDs when that particular part of the picture — or region — is intended to be dark.

Local dimming helps LED/LCD TVs more closely match the quality of modern OLED displays, which feature better contrast levels by their nature — something CCFL LCD TVs couldn’t do. The quality of local dimming varies depending on which type of backlighting your LCD uses, how many individual zones of backlighting are employed, and the quality of the processing. Here’s an overview of how effective local dimming is on each type of LCD TV.

TVs with full-array backlighting have the most accurate local dimming and therefore tend to offer the best contrast. Since an array of LEDs spans the entire back of the LCD screen, regions can generally be dimmed with more finesse than on edge-lit TVs, and brightness tends to be uniform across the entire screen. Hisense’s impressive U7G TVs are great examples of relatively affordable models that use multiple-zone, full-array backlighting with local dimming.

Because edge lighting employs LEDs positioned on the edge or edges of the screen to project light across the back of the LCD screen, as opposed to coming from directly behind it, it can result in very subtle blocks or bands of lighter pixels within or around areas that should be dark. The local dimming of edge-lit TVs can sometimes result in some murkiness in dark areas compared with full-array LED TVs. It should also be noted that not all LED edge-lit TVs offer local dimming, which is why it is not uncommon to see glowing strips of light at the edges of a TV and less brightness toward the center of the screen.

Since CCFL backlit TVs do not use LEDs, models with this lighting style do not have dimming abilities. Instead, the LCD panel of CCFL LCDs is constantly and evenly illuminated, making a noticeable difference in picture quality compared to LED LCDs. This is especially noticeable in scenes with high contrast, as the dark portions of the picture may appear too bright or washed out. When watching in a well-lit room, it’s easier to ignore or miss the difference, but in a dark room, it will be, well, glaring.

An OLED display uses a panel of pixel-sized organic compounds that respond to electricity. Since each tiny pixel (millions of which are present in modern displays) can be turned on or off individually, OLED displays are called “emissive” displays (meaning they require no backlight). They offer incredibly deep contrast ratios and better per-pixel accuracy than any other display type on the market.

Because they don’t require a separate light source, OLED displays are also amazingly thin — often just a few millimeters. OLED panels are often found on high-end TVs in place of LED/LCD technology, but that doesn’t mean that LED/LCDs aren’t without their own premium technology.

QLED is a premium tier of LED/LCD TVs from Samsung. Unlike OLED displays, QLED is not a so-called emissive display technology (lights still illuminate QLED pixels from behind). However, QLED TVs feature an updated illumination technology over regular LED LCDs in the form of Quantum Dot material (hence the “Q” in QLED), which raises overall efficiency and brightness. This translates to better, brighter grayscale and color and enhances HDR (High Dynamic Range) abilities.

And now to make things extra confusing, part of Samsung’s 2022 TV lineup is being billed as traditional OLEDs, although a deeper dive will reveal this is actually the company’s first foray into a new panel technology altogether called QD-OLED.
