1. Introduction: The Role of the JRP1105 in Modern Display Solutions
In the landscape of mid-sized LCD displays, the 10.1-inch JRP1105 stands out as a versatile, performance-driven solution tailored to bridge the gap between compact consumer screens and large-format industrial panels. Designed to deliver balanced visual clarity, responsive touch interaction, and robust operational stability, this display has become a go-to choice for applications ranging from industrial human-machine interfaces (HMIs) to consumer smart devices and automotive secondary displays.
What differentiates the JRP1105 from generic 10.1-inch displays is its optimized hardware configuration: it combines an IPS TFT LCD panel for wide viewing angles, a multi-point capacitive touch layer for intuitive input, and flexible connectivity options that support seamless integration with microcontrollers (MCUs), single-board computers (SBCs), and industrial control systems. Unlike displays focused solely on consumer aesthetics, the JRP1105 prioritizes practicality—offering industrial-grade temperature tolerance, high brightness for outdoor/harsh lighting, and durable touch performance that resists wear from frequent use.
This guide explores the JRP1105’s core specifications, technical architecture, real-world applications, development workflows, and troubleshooting best practices. Whether you’re an engineer integrating the display into an industrial machine, a maker building a smart home controller, or a designer refining a consumer product, this resource equips you to maximize the JRP1105’s capabilities.

2. Core Technical Specifications of the JRP1105 Display
To fully leverage the JRP1105’s potential, it’s critical to understand its hardware parameters—each of which directly impacts performance, compatibility, and suitability for specific use cases. Below is a detailed breakdown of its key specifications, with explanations of how they influence real-world functionality.
2.1 Display Panel Fundamentals
The JRP1105’s visual performance is defined by its TFT LCD panel, which uses In-Plane Switching (IPS) technology to deliver consistent image quality across all viewing angles. Key panel specifications include:
- Size and Aspect Ratio: A 10.1-inch diagonal (measured from corner to corner) with a 16:10 aspect ratio—ideal for displaying both landscape content (e.g., charts, videos) and portrait content (e.g., text-heavy dashboards). The physical dimensions of the panel (typically 222mm × 139mm × 3.5mm) balance screen real estate with portability, fitting into compact enclosures while providing enough space for detailed UI elements.
- Resolution: Standard configurations offer 1280 × 800 pixels (WXGA), with some variants supporting 1920 × 1200 (WUXGA) for high-definition applications. The 1280 × 800 resolution delivers a pixel density of ~149 PPI, ensuring sharp text (readable at 30–50cm viewing distance) and clear graphics—sufficient for industrial controls, smart home interfaces, and portable media devices. Higher-resolution 1920 × 1200 models (198 PPI) cater to applications requiring fine detail, such as medical diagnostic tools or high-end consumer devices.
- Brightness and Contrast: Typical brightness ranges from 350 nits (consumer-grade) to 500 nits (industrial-grade), with optional anti-glare coatings for outdoor or high-light environments (e.g., factory floors, automotive dashboards). A contrast ratio of 1000:1 (IPS panel standard) ensures distinct separation between light and dark pixels, making it easy to distinguish UI elements like buttons, graphs, and text—even in low-light conditions.
- Viewing Angles: IPS technology enables 178° horizontal and vertical viewing angles, meaning the display maintains color accuracy and brightness when viewed from off-center (e.g., multiple operators monitoring an industrial HMI, or passengers sharing a car’s secondary display). This eliminates the “washed-out” effect common in TN (Twisted Nematic) panels, a critical advantage for collaborative or shared-use scenarios.
- Response Time: A 5ms (gray-to-gray) response time minimizes motion blur for dynamic content, such as video playback in automotive rear-seat entertainment systems or real-time data updates in industrial dashboards. This ensures smooth visuals without ghosting, even when displaying fast-changing information.
2.2 Capacitive Touch Technology
The JRP1105’s touch layer uses projected capacitive technology (P-Cap), a premium solution that supports multi-touch input and precise interaction—outperforming resistive touch in responsiveness and durability. Key touch specifications include:
- Touch Points: Supports 5-point multi-touch, enabling gestures like pinch-to-zoom (for maps or images), two-finger scrolling (for long text), and tap-to-select (for UI buttons). This makes the display suitable for intuitive consumer devices (e.g., smart home controllers) and efficient industrial interfaces (e.g., zooming into detailed machine data).
- Touch Accuracy: ±1mm accuracy across the entire active area, with a touch resolution of 4096 × 4096 pixels. This precision ensures reliable input even for small UI elements (e.g., 5mm-diameter buttons in medical devices or industrial controls), reducing user error.
- Response Time: <100ms touch response time, delivering near-instant feedback for user actions. This is critical for time-sensitive applications, such as industrial machines where delayed input could impact productivity or safety.
- Durability: The touch layer uses a 0.7mm tempered glass cover (7H Mohs hardness rating) that resists scratches from daily use (e.g., keys, styluses) and withstands moderate impacts. Unlike resistive touch panels (which require pressure and degrade over time), P-Cap panels have no moving parts, offering a lifespan of 500,000+ touch cycles.
- Environmental Resistance: Industrial variants include water-resistant touch layers (IP65-rated) that handle spills or moisture in factory or automotive environments. The touch layer also works with gloves (thin latex or nitrile) — a key feature for industrial operators or medical professionals who cannot use bare hands.
2.3 Connectivity and Integration
The JRP1105 supports multiple interfaces to ensure compatibility with diverse host devices, from low-power MCUs to high-performance SBCs. Key connectivity features include:
- Video Interfaces:
- HDMI: HDMI 1.4 or 2.0 support for digital video/audio transmission, compatible with computers, Raspberry Pi, and media players. HDMI enables plug-and-play functionality, with automatic resolution detection (e.g., the display will default to 1280 × 800 if the host outputs that resolution).
- LVDS (Low-Voltage Differential Signaling): A high-speed interface for industrial applications, supporting data rates up to 600 Mbps. LVDS minimizes electromagnetic interference (EMI), making it ideal for factory environments with heavy electrical equipment. It also reduces power consumption compared to HDMI, suitable for battery-powered devices.
- MIPI DSI (Mobile Industry Processor Interface Display Serial Interface): Optional for compact consumer devices (e.g., portable tablets), offering low-power, high-speed connectivity to mobile SoCs (System on Chips).
- Touch Interface: A USB 2.0 interface for touch data transmission, compatible with Windows, Linux, and Android operating systems. No proprietary drivers are required for most OSes— the touch layer is recognized as a standard HID (Human Interface Device), simplifying integration.
- Power Requirements: Operates on 5V DC (±5% tolerance) with a typical current draw of 200mA (display only) or 350mA (display + touch). Industrial variants support 12V DC input with a built-in voltage regulator, matching the power systems of most industrial machines.
2.4 Environmental and Operational Stability
The JRP1105 is engineered to perform reliably in diverse conditions, with variants tailored to consumer and industrial use cases:
- Temperature Range:
- Consumer Grade: 0°C to 50°C (32°F to 122°F) — suitable for indoor devices like smart home controllers or tablet docks.
- Industrial Grade: -20°C to 70°C (-4°F to 158°F) — designed for factory floors, automotive cabins, or outdoor kiosks where temperature fluctuations are common.
- Humidity Tolerance: 20% to 80% relative humidity (non-condensing), preventing damage from moisture in warehouses or tropical environments.
- Vibration Resistance: Industrial models withstand 5G rms vibration (10Hz to 2000Hz) — compliant with IEC 60068-2-6 standards — making them suitable for automotive or heavy machinery applications.
- EMI Compliance: Meets EN 55032 Class B standards for electromagnetic emissions, ensuring the display does not interfere with nearby electronic equipment (e.g., industrial sensors, medical devices).
3. Technical Architecture: How the JRP1105 Works
To optimize integration and troubleshooting, it’s essential to understand the JRP1105’s internal architecture—from the LCD panel’s pixel control to the touch layer’s signal processing. Below is a breakdown of its key components and their interactions.
3.1 LCD Display Subsystem
The JRP1105’s display subsystem uses a TFT (Thin-Film Transistor) IPS panel to control individual pixels, delivering consistent brightness and color. Its core components include:
- TFT Array: A grid of thin-film transistors (one per pixel) that act as switches to control the flow of current to each pixel. Unlike passive-matrix LCDs (which suffer from crosstalk), TFT technology ensures each pixel is addressed independently, enabling sharp images and fast response times.
- Liquid Crystal Layer: Sandwiched between two glass substrates, liquid crystal molecules align when an electric current is applied (via the TFT array). This alignment controls the amount of light passing through the pixel, creating the visible image. IPS panels align molecules parallel to the substrates, which is why they offer wider viewing angles than TN panels.
- Color Filters: A layer of red, green, and blue (RGB) filters applied to each pixel, enabling full-color output. The JRP1105 supports 16.7 million colors (24-bit color depth), ensuring accurate color reproduction for applications like medical imaging or consumer media.
- Backlight Unit (BLU): An array of white LEDs (edge-lit or direct-lit) that provides uniform illumination to the LCD panel. Edge-lit designs (used in most JRP1105 variants) place LEDs along the panel’s edges, reducing thickness (3.5mm) and power consumption. The BLU includes a light guide plate (LGP) to distribute light evenly across the active area, eliminating hotspots.
- Display Controller IC: A dedicated chip (e.g., ILI9881C-compatible) that processes video signals from the host device (HDMI/LVDS/MIPI) and converts them into pixel-level commands for the TFT array. It also handles brightness adjustment, gamma correction (to optimize color response for human vision), and resolution scaling (e.g., downscaling 1920 × 1080 input to 1280 × 800).
3.2 Capacitive Touch Subsystem
The JRP1105’s touch subsystem uses projected capacitive technology to detect user input, relying on electrical signals rather than physical pressure. Its key components include:
- Touch Sensor Layer: A transparent film (ITO — Indium Tin Oxide) printed with a grid of conductive rows and columns, embedded between the tempered glass cover and the LCD panel. When a finger (or conductive stylus) approaches the grid, it disturbs the electrostatic field, creating a measurable change in capacitance.
- Touch Controller IC: A specialized chip that scans the ITO grid at 120Hz (120 times per second) to detect capacitance changes. It calculates the touch’s X/Y coordinates by measuring the magnitude of the disturbance across adjacent rows and columns. For multi-touch, the controller distinguishes between multiple capacitance peaks (one per finger) and tracks their movement.
- Signal Processing Circuitry: Filters out noise (e.g., from nearby electrical equipment) to ensure accurate touch detection. Industrial variants include advanced noise cancellation, making the touch layer reliable in EMI-heavy environments like factories.
- USB Interface Chip: Converts the touch controller’s raw coordinate data into HID-compliant USB signals, which the host device recognizes as a standard touchscreen. This eliminates the need for custom drivers, as most OSes (Windows 10+, Linux 4.15+, Android 8.0+) include built-in HID support.
3.3 Power Management Subsystem
The JRP1105’s power management ensures stable operation across voltage fluctuations and reduces energy consumption:
- Voltage Regulators: Convert the input voltage (5V/12V) to the voltages required by internal components: 3.3V for the display controller and touch IC, 1.8V for the TFT array, and 2.8V for the backlight LEDs.
- Backlight Dimming Circuitry: Supports PWM (Pulse-Width Modulation) dimming, allowing the host device to adjust brightness (0–100%) via software. This is critical for battery-powered devices (to extend runtime) and automotive applications (to reduce glare at night).
- Low-Power Modes: Includes a sleep mode that reduces power consumption to <50μA when the display is inactive (triggered via HDMI/LVDS signal loss or a software command). This is ideal for battery-powered devices like portable diagnostic tools.
4. Real-World Applications of the JRP1105
The JRP1105’s balanced feature set—combining IPS visuals, capacitive touch, and industrial-grade stability—makes it suitable for diverse industries. Below are its most common use cases, with explanations of how its specifications address application-specific challenges.
4.1 Industrial Human-Machine Interfaces (HMIs)
Industrial HMIs require displays that are readable in harsh lighting, durable enough for frequent use, and compatible with control systems. The JRP1105 meets these needs by:
- High Brightness (500 nits) + Anti-Glare Coating: Ensures visibility on factory floors with overhead lighting or natural sunlight, eliminating the need for additional shading.
- Wide Temperature Range (-20°C to 70°C): Withstands extreme temperatures in warehouses, foundries, or outdoor industrial sites.
- 5-Point Touch + Gloved Operation: Enables operators to interact with the HMI while wearing work gloves, reducing downtime (no need to remove gloves for input).
- LVDS Interface: Minimizes EMI interference from nearby machinery (e.g., motors, sensors), ensuring stable video output.
Common industrial applications include:
- Machine Control Panels: Displaying real-time data (e.g., temperature, pressure) for CNC machines, conveyor belts, or packaging equipment.
- SCADA (Supervisory Control and Data Acquisition) Interfaces: Monitoring and controlling distributed industrial systems (e.g., water treatment plants, power grids).
- Maintenance Dashboards: Providing technicians with access to equipment diagnostics, repair guides, and part lists via touch input.
4.2 Automotive Secondary Displays
Modern vehicles rely on secondary displays for rear-seat entertainment, climate control, or navigation assistance. The JRP1105 is well-suited for these roles due to:
- IPS Viewing Angles (178°): Ensures passengers in different seats (front, rear, left, right) can view content without color distortion.
- Vibration Resistance (5G rms): Withstands the constant vibration of moving vehicles, preventing display damage or touch malfunctions.
- HDMI Interface: Connects to in-car media players or smartphones (via HDMI adapters) to stream videos, music, or navigation apps.
- Low Power Consumption (350mA max): Reduces drain on the vehicle’s battery, even during extended use.
Automotive applications include:
- Rear-Seat Entertainment Systems: Mounted on the back of front seats to provide video playback for passengers.
- Climate Control Interfaces: Touch-enabled panels for adjusting temperature, fan speed, or seat heating/cooling (supplementing the main dashboard).
- Navigation Assist Displays: Mounted in the center console to show detailed maps or turn-by-turn directions, reducing driver distraction from the main dashboard.
4.3 Consumer Smart Devices
The JRP1105’s combination of aesthetics and functionality makes it a popular choice for consumer electronics, where user experience and design are priorities. Key advantages include:
- Slim Profile (3.5mm): Fits into compact devices like portable tablets, smart home controllers, or digital photo frames.
- 1280 × 800 Resolution + 16.7M Colors: Delivers vibrant visuals for streaming media, browsing the web, or viewing photos.
- 5-Point Multi-Touch: Enables intuitive gestures for consumer apps (e.g., pinching to zoom into photos, scrolling through social media).
- Plug-and-Play HDMI/USB: Simplifies integration into DIY projects (e.g., Raspberry Pi-based smart mirrors, portable gaming consoles).
Consumer applications include:
- Smart Home Controllers: Centralized interfaces for managing lights, thermostats, security cameras, and smart appliances.
- Portable Media Players: Battery-powered devices for streaming videos or music during travel.
- Digital Signage Kiosks: Small-format kiosks for retail stores (e.g., product information, self-checkout assistants) or restaurants (e.g., digital menus).
4.4 Medical and Healthcare Devices
Medical devices demand displays that are precise, sterile, and reliable—requirements the JRP1105 meets through:
- Touch Accuracy (±1mm): Ensures precise input for medical applications like selecting patient data or adjusting diagnostic tools.
- IP65 Water Resistance (Industrial Variant): Enables cleaning with disinfectants (e.g., ethanol, hydrogen peroxide) without damaging the touch layer—critical for maintaining sterility in hospitals.
- Color Accuracy (100% sRGB): Reproduces accurate colors for medical imaging (e.g., ultrasound scans, dermatological photos) or diagnostic tools.
- Low EMI Emissions: Complies with medical EMC standards (e.g., IEC 60601-1-2), ensuring the display does not interfere with sensitive medical equipment (e.g., ECG machines, MRI scanners).
Medical applications include:
- Portable Diagnostic Tools: Displaying test results for blood glucose monitors, pulse oximeters, or urine analyzers.
- Patient Monitoring Systems: Showing vital signs (heart rate, blood pressure, oxygen levels) in clinics or home healthcare settings.
- Medical Cart Interfaces: Mounted on mobile carts to provide access to electronic health records (EHRs) or medication lists for nurses and doctors.
5. Integration Guide: Setting Up the JRP1105
Integrating the JRP1105 into a project requires careful hardware wiring and software configuration. Below is a step-by-step guide for common host devices, including Raspberry Pi (SBC), Arduino (MCU), and industrial PCs.
5.1 Hardware Setup for Raspberry Pi (4B/Zero 2 W)
The Raspberry Pi is a popular choice for DIY projects and small-scale industrial applications. The JRP1105 connects via HDMI (video) and USB (touch), with no additional hardware required.
5.1.1 Wiring
JRP1105 Port
|
Raspberry Pi Pin/Port
|
Function
|
HDMI
|
HDMI Port
|
Video/audio transmission
|
USB (Touch)
|
USB-A Port
|
Touch data transmission
|
5V DC
|
USB-C Port (Power)
|
Power supply (Raspberry Pi can power the display if using a 2.5A+ power adapter)
|
GND
|
GND Pin (Optional)
|
Ground (only required if using external power for the display)
|
5.1.2 Software Configuration
- Install the Operating System: Use Raspberry Pi OS (64-bit) — the display is plug-and-play for video (HDMI) and touch (USB).
- Adjust Display Settings: If the display shows a cropped image or incorrect resolution:
- Open /boot/config.txt in a text editor.
- Add hdmi_cvt=1280 800 60 6 0 0 0 (for 1280 × 800 resolution, 60Hz refresh rate).
- Add hdmi_group=2 and hdmi_mode=87 to force the custom resolution.
- Reboot the Pi with sudo reboot.
- Test Touch Functionality: The touch layer is recognized as a standard HID device. To verify:
- Open the Raspberry Pi’s “Preferences” > “Mouse and Touchpad.”
- Navigate to the “Touchscreen” tab — you should see the JRP1105 listed as a touch device.
- Use a finger to tap icons or scroll — the cursor should follow your input.
5.2 Hardware Setup for Arduino (Uno/Nano + MKR VIDOR 4000)
5.2.1 Wiring
JRP1105 Port
|
Arduino Component
|
Function
|
HDMI
|
MKR VIDOR 4000 HDMI Port
|
Video transmission (audio not supported by most Arduino HDMI shields)
|
USB (Touch)
|
USB Host Shield USB Port
|
Touch data transmission
|
5V DC
|
External Power Supply
|
Power (Arduino’s 5V pin cannot power the display — use a 5V/2A adapter)
|
GND
|
Arduino GND Pin
|
Ground (common ground with the power supply)
|
5.2.2 Software Configuration
- Install Required Libraries:
- For HDMI video: Install the “VidorGraphics” library via the Arduino Library Manager.
- For touch input: Install the “USBHID” library to read HID touch data.
- Sample Code (Display a Test Image):
#include <VidorGraphics.h>void setup() { // Initialize HDMI (1280 × 800 resolution) VidorGraphics.begin(1280, 800); VidorGraphics.clearScreen(0x000000); // Black background}void loop() { // Draw a red rectangle VidorGraphics.drawRect(100, 100, 200, 150, 0xFF0000); // Draw white text VidorGraphics.setCursor(120, 120); VidorGraphics.setTextColor(0xFFFFFF); VidorGraphics.setTextSize(2); VidorGraphics.print("JRP1105 Test"); delay(1000);}
- Test Touch Input: Use the “USBHID” library to read X/Y coordinates from the touch layer. Example code is available in the library’s “Touchscreen” folder.
5.3 Hardware Setup for Industrial PCs (IPC)
5.3.1 Wiring (LVDS Interface)
JRP1105 LVDS Pin
|
IPC LVDS Pin
|
Function
|
VCC (5V)
|
5V
|
Power for LVDS interface
|
GND
|
GND
|
Ground
|
LVDS_CLK+/-
|
LVDS_CLK+/-
|
Clock signal
|
LVDS_DATA0+/-
|
LVDS_DATA0+/-
|
Data channel 0
|
LVDS_DATA1+/-
|
LVDS_DATA1+/-
|
Data channel 1
|
LVDS_DATA2+/-
|
LVDS_DATA2+/-
|
Data channel 2
|
5.3.2 Software Configuration
- Install Drivers: Most industrial OSes (e.g., Windows 10 IoT Enterprise, Linux Ubuntu Server) include built-in drivers for the JRP1105’s display and touch layer.
- Calibrate Touch: For industrial applications requiring high accuracy:
- On Windows: Open “Control Panel” > “Tablet PC Settings” > “Calibrate the screen for pen or touch input.”
- On Linux: Install xinput-calibrator via sudo apt-get install xinput-calibrator, then run the tool to calibrate touch coordinates.
- Enable Industrial Modes: Use the display’s OSD (On-Screen Display) menu (accessed via physical buttons on the JRP1105) to enable:
- Wide Temperature Mode: Optimizes the backlight and LCD panel for -20°C to 70°C operation.
- EMI Filtering: Reduces noise interference from nearby machinery.
6. Troubleshooting Common JRP1105 Issues
Even with proper setup, issues like touch malfunctions or display artifacts may occur. Below is a troubleshooting guide for the most frequent problems, with step-by-step solutions.
6.1 No Display Output
Symptom
|
Possible Causes
|
Solution
|
Black screen, no backlight
|
1. Power not connected.2. Faulty power adapter.3. Backlight driver failure.
|
1. Verify the 5V/12V power cable is securely connected.2. Test the power adapter with a multimeter (ensure it outputs the correct voltage).3. Replace the backlight driver (industrial variants have replaceable drivers; contact the supplier for parts).
|
Backlight on, no image
|
1. Video cable (HDMI/LVDS) not connected.2. Incorrect resolution (host outputs higher/lower than JRP1105’s supported resolution).3. Faulty video interface chip.
|
1. Reconnect the HDMI/LVDS cable and ensure it’s not damaged.2. Adjust the host’s resolution to 1280 × 800 (JRP1105’s default).3. Test the display with a different host device (e.g., a laptop) to rule out a faulty interface chip.
|
6.2 Touch Malfunctions
Symptom
|
Possible Causes
|
Solution
|
No touch response
|
1. USB touch cable not connected.2. Driver not installed (rare for HID-compatible OSes).3. Touch controller IC failure.
|
1. Reconnect the USB touch cable and ensure the USB port on the host is working.2. On Windows, check “Device Manager” — the touch layer should appear under “Human Interface Devices.”3. Test the USB cable with a different device (e.g., a mouse) to rule out a faulty cable; if the issue persists, replace the touch controller.
|
Touch input is offset (e.g., tap left, cursor moves right)
|
1. Touch calibration is incorrect.2. The touch layer is misaligned with the LCD panel.
|
1. Recalibrate the touch layer using OS-specific tools (e.g., “Tablet PC Settings” on Windows, xinput-calibrator on Linux).2. For industrial variants, adjust the touch layer’s mounting screws to align it with the LCD panel.
|
Intermittent touch response
|
1. EMI interference from nearby equipment.2. Dirty touch surface (oil, dust).3. Loose USB connection.
|
1. Move the display away from EMI sources (e.g., motors, transformers) or use a shielded USB cable.2. Clean the touch surface with a microfiber cloth and isopropyl alcohol.3. Secure the USB cable with cable ties to prevent accidental disconnection.
|
6.3 Display Artifacts (Flickering, Lines, or Color Distortion)
Symptom
|
Possible Causes
|
Solution
|
Flickering screen
|
1. Unstable power supply.2. HDMI/LVDS cable interference.3. Backlight LED failure.
|
1. Use a higher-current power adapter (2A+ for 5V models).2. Replace the HDMI/LVDS cable with a shielded variant.3. Inspect the backlight LEDs (visible through the panel’s edges) — if one or more are dark, replace the backlight unit.
|
Vertical/horizontal lines on the screen
|
1. Faulty TFT array (pixel damage).2. Loose LVDS data cables.3. Display controller IC failure.
|
1. Check if the lines are permanent (pixel damage) — if so, replace the LCD panel.2. Reconnect the LVDS data cables (for industrial variants with accessible wiring).3. Test the display with a different host device; if lines persist, replace the display controller.
|
Color distortion (e.g., too red, washed-out colors)
|
1. Gamma correction is incorrect.2. Faulty color filters in the LCD panel.3. Incorrect display settings on the host.
|
1. Adjust gamma via the OSD menu (look for “Gamma” or “Color Temperature” settings).2. If colors are consistently distorted, the LCD panel’s color filters may be damaged — replace the panel.3. On the host, reset display color settings to default (e.g., “Calibrate Display” on Windows).
|
7. Future Trends: The Evolution of the JRP1105
As display technology advances, the JRP1105 is expected to integrate new features to meet emerging market demands. Below are key trends shaping its future development:
7.1 Higher Resolution and Pixel Density
Future JRP1105 variants may adopt 2560 × 1600 (WQXGA) resolution, increasing pixel density to ~299 PPI. This will enable sharper text and more detailed graphics, making the display suitable for high-end applications like medical imaging or professional-grade HMIs.
7.2 Enhanced Touch Technology
- 10-Point Multi-Touch: Supporting more touch points will enable advanced gestures, such as three-finger swiping (for navigating between apps) or four-finger pinching (for zooming into detailed data).
- Force-Sensitive Touch: Adding pressure detection will allow users to adjust input intensity (e.g., pressing harder to select a menu item, lighter for scrolling), enhancing usability in industrial and consumer applications.
7.3 Improved Energy Efficiency
- Mini-LED Backlighting: Replacing traditional LEDs with mini-LEDs will reduce power consumption by 30% while improving brightness uniformity and contrast (up to 5000:1).
- Low-Power Sleep Modes: Adding a “deep sleep” mode (consuming <10μA) will extend battery life for portable devices like medical diagnostic tools or outdoor kiosks.
7.4 Integration with Smart Sensors
Future JRP1105 models may include built-in sensors to optimize performance:
- Ambient Light Sensor: Automatically adjusts brightness based on surrounding light, reducing eye strain and power consumption.
- Proximity Sensor: Turns off the display when no user is nearby (e.g., in automotive applications when the vehicle is parked), saving energy.
8. Conclusion: The JRP1105 as a Versatile Display Solution

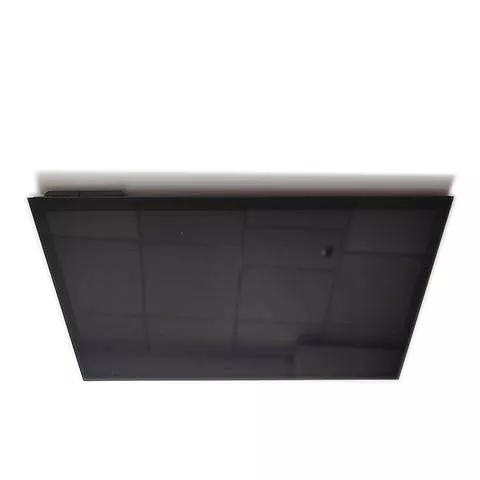

The 10.1-inch JRP1105 LCD display with capacitive touch fills a critical niche in the display market—offering the perfect balance of visual performance, touch responsiveness, and operational stability. Its IPS panel delivers wide viewing angles and vibrant colors, while its projected capacitive touch layer enables intuitive, durable input. Whether used in industrial HMIs, automotive secondary displays, consumer smart devices, or medical tools, the JRP1105 adapts to diverse environments and use cases.
By understanding its technical specifications, internal architecture, and integration workflows, developers and engineers can unlock the JRP1105’s full potential—creating products that are both functional and user-friendly. As display technology evolves, the JRP1105 is poised to incorporate higher resolutions, smarter features, and greater energy efficiency, ensuring it remains a relevant and valuable solution for years to come.
For anyone seeking a mid-sized display that combines reliability, performance, and flexibility, the JRP1105 stands out as a proven choice—one that delivers on both technical requirements and real-world user needs.
