Technical Specifications of 3.5-inch TFT LCD Displays in the Display Industry

In the ever - evolving landscape of the display industry, 3.5-inch TFT (Thin Film Transistor) LCD displays have carved out a niche for themselves, offering a compact yet highly functional display solution. Widely used in applications ranging from automotive dashboards and industrial control panels to handheld devices and medical equipment, these displays' effectiveness hinges on their precise technical specifications. This article delves deep into the key technical aspects of 3.5-inch TFT LCD displays, optimizing content for Google SEO to ensure high visibility and provide valuable insights to industry professionals, manufacturers, and end - users.

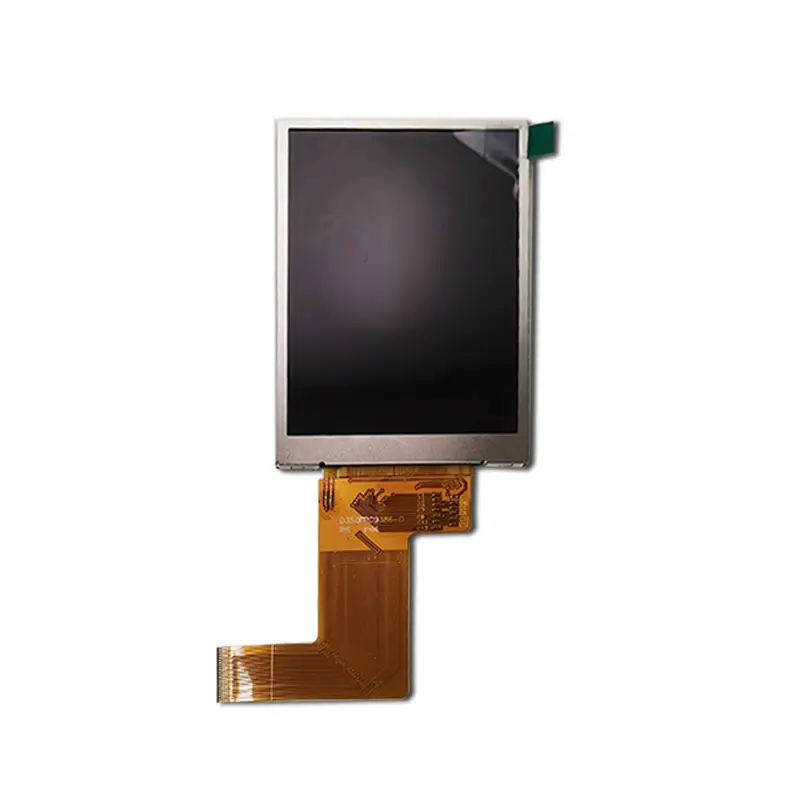

A standard 3.5-inch TFT LCD display has a diagonal measurement of 3.5 inches (approximately 88.9 mm). The typical active display area dimensions are around 70 mm in width and 53 mm in height for a 4:3 aspect ratio, which is commonly adopted by these compact displays. The overall thickness of the display module varies depending on the design and additional features:

• Standard Modules: For basic 3.5-inch TFT LCDs without additional protective layers or touchscreen integration, the thickness usually ranges from 2.5 to 4 mm. This slim profile makes them suitable for space - constrained applications like portable media players or small embedded systems.
• Enhanced Modules: When integrated with a resistive or capacitive touchscreen, or equipped with additional protective enclosures, the thickness can increase to 4 - 6 mm. These enhanced modules are often used in industrial or consumer devices where durability and user interaction are priorities.

The 4:3 aspect ratio is the norm for 3.5-inch TFT LCD displays due to its suitability for displaying text, simple graphics, and basic user interfaces. The most common resolution for these displays is 320×240 (QVGA - Quarter Video Graphics Array), which results in a pixel density of approximately 114 pixels per inch (PPI). This pixel density provides a reasonable level of detail for applications where high - definition visuals are not the primary requirement, such as showing instrument readings in automotive dashboards or simple menu interfaces in handheld devices. However, some higher - end 3.5-inch TFT LCDs may offer resolutions like 480×320 or 640×480 (VGA), increasing the pixel density and visual clarity for more demanding applications.

TFT technology in these 3.5-inch LCDs uses thin - film transistors to control each pixel, enabling better contrast, faster response times, and higher image quality compared to simpler LCD technologies.

• Liquid Crystal Material: The choice of liquid crystal material affects the display's performance. Nematic liquid crystals are commonly used in 3.5-inch TFT LCDs. They offer a good balance between cost, response time, and optical properties. The liquid crystal layer's thickness is precisely controlled, usually in the range of 5 - 8 micrometers, to ensure proper light modulation and display performance.
• Backlight System: Most 3.5-inch TFT LCDs employ LED (Light - Emitting Diode) backlights. LED backlights offer advantages such as energy efficiency, long lifespan (typically over 50,000 hours), and good color consistency. The backlight's brightness can be adjusted through electrical control, allowing the display to adapt to different ambient lighting conditions. Some advanced models may feature local dimming capabilities in the backlight, enhancing contrast by independently controlling the brightness of different regions of the display.

• Brightness: The brightness of 3.5-inch TFT LCD displays is measured in nits (cd/m²). For indoor - only applications, such as in control panels within factory environments or in handheld devices used indoors, a brightness level of 200 - 350 nits is usually sufficient. This range provides a clear and comfortable viewing experience under normal indoor lighting. However, for displays intended for outdoor use or in high - ambient - light environments, such as in automotive dashboards exposed to sunlight or in outdoor - facing handheld devices, higher brightness levels are required. Displays designed for such conditions can offer brightness levels ranging from 500 to 1000 nits or even higher, often combined with anti - glare coatings to reduce reflections and improve visibility.
• Contrast Ratio: The contrast ratio of 3.5-inch TFT LCDs typically ranges from 300:1 to 1000:1. A higher contrast ratio means a greater difference between the brightest white and the darkest black that the display can produce, resulting in more vivid and engaging images. In applications where visual clarity is important, such as in displaying product images in handheld point - of - sale devices or showing diagnostic information in medical equipment, a higher contrast ratio is preferred to make the content stand out clearly.

• Color Gamut: The color gamut of 3.5-inch TFT LCD displays is usually specified in terms of the percentage of the NTSC (National Television System Committee) color space they can cover. Standard 3.5-inch TFT LCDs typically cover around 60 - 70% of the NTSC color space, which is adequate for most general - purpose applications like displaying text, simple icons, and basic graphics. However, for applications that require more accurate color representation, such as in medical imaging devices or high - end consumer electronics, some 3.5-inch TFT LCDs can cover up to 80 - 90% of the NTSC color space or a significant portion of the sRGB color space.
• Color Depth: These displays commonly offer a color depth of 6 - bit or 8 - bit. A 6 - bit display can produce 64,000 colors, while an 8 - bit display can display 262,000 colors. Some advanced 3.5-inch TFT LCDs may use frame rate control (FRC) techniques to simulate 16.7 million colors even with a 6 - bit panel, enhancing the visual quality for applications where a wider color range is desired.

The response time of 3.5-inch TFT LCD displays is an important specification, especially for applications involving moving images or quick - changing content. Response time is the time it takes for a pixel to change from one color to another, usually measured in milliseconds (ms). For standard 3.5-inch TFT LCDs, the response time typically ranges from 8 to 25 ms. Faster response times, in the range of 8 - 12 ms, are more suitable for applications like gaming on handheld devices or displaying video content, as they reduce motion blur and provide a smoother visual experience. Displays with longer response times may be acceptable for applications where content changes slowly, such as in static information displays or simple menu - based interfaces.

Power consumption is a crucial factor, especially for battery - powered devices that use 3.5-inch TFT LCD displays.

• Static Power: In standby mode, with the backlight off, the static power consumption of a 3.5-inch TFT LCD display is relatively low, usually ranging from 0.1 to 0.3 W. This low power draw helps conserve battery life when the display is not actively in use.
• Dynamic Power: When the display is in operation with the backlight on, the dynamic power consumption depends on factors such as the display's brightness level, resolution, and the content being displayed. For a standard 3.5-inch TFT LCD with a 320×240 resolution and the backlight set to 50% brightness, the power consumption may range from 0.5 to 1.2 W. As the brightness is increased or more complex graphics are displayed, the power consumption can rise accordingly.

• Driving Voltage: The driving voltage required for 3.5-inch TFT LCD displays typically ranges from 3.3 to 5 volts. This voltage is used to control the liquid crystal orientation and drive the TFTs to display the desired images. Precise control of the driving voltage is essential to ensure consistent display performance and prevent issues such as pixel distortion or incorrect color representation.
• Driving Current: The driving current is carefully regulated to control the light emission of the backlight and the operation of the TFTs. The current consumption for the backlight can vary depending on its brightness level, while the current required for the TFT array is relatively stable. Manufacturers provide detailed electrical specifications regarding the driving current to help designers integrate the display into their systems efficiently.

• Parallel Interface: A common interface for 3.5-inch TFT LCD displays is the parallel interface. It uses multiple signal lines to transmit data, control signals, and power to the display. Parallel interfaces are relatively straightforward to implement but may require a larger number of pins on the microcontroller or driver circuit. They are suitable for applications where simplicity and cost - effectiveness are priorities.
• Serial Interface: Serial interfaces, such as SPI (Serial Peripheral Interface) or I²C (Inter - Integrated Circuit), are also used with 3.5-inch TFT LCDs. These interfaces use fewer signal lines, reducing the complexity of the circuit design and the space required on the printed circuit board. Serial interfaces are often preferred in applications where a more compact design is needed or when communication with other components on the same bus is required.
• LVDS (Low - Voltage Differential Signaling): For higher - performance applications or when longer cable lengths are involved, LVDS interfaces may be used. LVDS offers low - noise, high - speed data transmission, making it suitable for applications where a clear and stable signal is crucial, such as in automotive displays or industrial control systems with remote display units.

• Mechanical Strength: 3.5-inch TFT LCD displays are designed to withstand normal handling and operational conditions. The front glass or plastic cover of the display is typically made of durable materials to resist scratches and minor impacts. Some industrial - grade displays may have additional protective layers or ruggedized enclosures to withstand harsher environments, such as vibrations, shocks, and exposure to dust and moisture.
• Mounting Options: These displays often come with standard mounting holes or mounting brackets, allowing for easy integration into various devices and systems. The mounting holes are usually positioned according to industry - standard patterns, making it convenient for designers to attach the display to the chassis or housing of their products. Some displays may also offer flexible mounting options, such as adhesive backing or snap - fit mechanisms, for more streamlined assembly processes.

• Temperature Range: 3.5-inch TFT LCD displays are designed to operate within a specific temperature range. For commercial - grade displays, the typical operating temperature range is 0°C to 50°C. This range covers most indoor and mild outdoor environments. However, industrial - grade 3.5-inch TFT LCDs are engineered to operate in a wider temperature range, often from - 20°C to 70°C or even more extreme conditions. These displays use temperature - compensating circuits and special liquid crystal materials to ensure stable performance across a broad temperature spectrum.
• Humidity Resistance: In terms of humidity, most 3.5-inch TFT LCD displays can withstand relative humidity levels between 10% and 90% (non - condensing). This range allows the displays to be used in a variety of indoor and outdoor environments without being affected by normal humidity fluctuations. Some displays may also have additional moisture - resistant coatings or enclosures for use in more humid or wet environments, such as near coastal areas or in food processing facilities.

• Dashboard Displays: In automotive dashboards, 3.5-inch TFT LCDs are used to display vehicle information such as speed, fuel level, engine status, and navigation prompts. Key specification requirements for these applications include high brightness (to ensure visibility in direct sunlight), wide viewing angles (so that the driver and passengers can clearly see the display from different positions), and resistance to vibration and temperature variations. The display should also be able to integrate seamlessly with the vehicle's electrical system and support communication interfaces for receiving data from various sensors and control units.
• Rear - View Camera Monitors: For rear - view camera monitors in cars, 3.5-inch TFT LCDs offer a compact and cost - effective display solution. These displays need to have fast response times to provide smooth video playback of the rear - view camera feed, reducing the risk of motion blur when reversing. Good contrast and color accuracy are also important to clearly distinguish objects in the camera image, enhancing safety during parking and maneuvering.

• Control Panel Displays: In industrial control panels, 3.5-inch TFT LCDs are used to display process parameters, system status information, and control interfaces. Industrial - grade displays are preferred in these applications, with features such as a wide operating temperature range, high durability to withstand vibrations and shocks in industrial environments, and support for serial or Ethernet interfaces for easy integration with industrial control systems. The display should also have good readability in different lighting conditions, including bright factory floors and dimly lit control rooms.
• Portable Industrial Devices: For portable industrial devices like handheld scanners, data loggers, and maintenance tools, 3.5-inch TFT LCDs provide a convenient display for showing information and interacting with the device. These displays need to be energy - efficient to extend the battery life of the portable device, have a rugged design to withstand rough handling in the field, and offer a user - friendly interface with good touchscreen functionality (if applicable).

• Handheld Gaming Devices: In handheld gaming devices, 3.5-inch TFT LCDs with high - resolution, fast response times, and good color performance are desired to provide an immersive gaming experience. A higher pixel density and wide color gamut can make game graphics look more vibrant and detailed, while a fast response time ensures smooth gameplay without motion blur. The display should also be energy - efficient to allow for longer gaming sessions on a single battery charge.
• Portable Media Players: For portable media players, 3.5-inch TFT LCDs are used to display music playlists, video thumbnails, and other user interface elements. Good color accuracy and contrast are important for displaying images and videos clearly, while a bright display with an anti - glare coating can improve visibility in different lighting conditions, whether indoors or outdoors. The display's power consumption also affects the overall battery life of the media player, making energy - efficiency a key consideration.

• Patient Monitors: In patient monitors, 3.5-inch TFT LCDs are used to display vital signs such as heart rate, blood pressure, and oxygen saturation. These displays require high color accuracy to clearly distinguish different waveforms and data readings. They also need to meet strict medical safety and hygiene standards, with smooth surfaces that are easy to clean and disinfect. The display should be able to operate reliably in a hospital environment, with good visibility under various lighting conditions and resistance to electromagnetic interference from other medical devices.
• Portable Medical Devices: For portable medical devices like glucose monitors, handheld diagnostic tools, and infusion pumps, 3.5-inch TFT LCDs offer a compact display solution. These displays need to be easy to read, even for users with limited vision, with large, clear text and graphics. They should also be durable enough to withstand the rigors of medical use and have long battery life to ensure continuous operation during patient care.

3.5-inch TFT LCD displays play a vital role in numerous industries, thanks to their compact size, versatile functionality, and customizable technical specifications. Understanding the intricacies of these specifications, from display performance and electrical characteristics to mechanical and environmental adaptations, is essential for both manufacturers looking to develop high - quality products and businesses seeking the right display solutions for their applications. By optimizing content for Google SEO, this article aims to bridge the knowledge gap and serve as a valuable resource for all stakeholders in the display industry, facilitating informed decision - making and driving innovation in the use of 3.5-inch TFT LCD displays.
