In the current era of continuous development of electronic display technology, a wide variety of display screens emerge in an endless stream. Among them, the custom segment LCD display occupies a place among numerous display devices with its unique characteristics. So, what exactly is a custom segment LCD display? What advantages does it possess, and in which fields is it applied? This article will provide you with detailed answers.



​



I. What is a Custom Segment LCD Display?​

A custom segment LCD display is a type of liquid crystal display that can be designed and manufactured according to specific user requirements. Its basic principle is based on the electro-optical effect of liquid crystals. Liquid crystals are substances with both the fluidity of a liquid and the optical properties of a crystal. Under the action of an electric field, the alignment direction of liquid crystal molecules changes, thereby affecting the passage of light and realizing the display of images and text.​

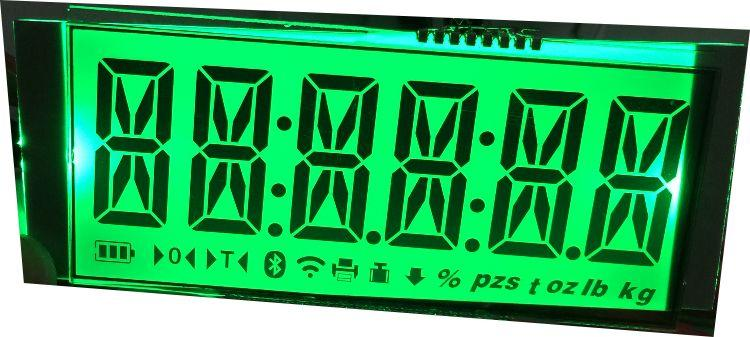

Segment LCD displays divide the display area into several independent segments. Each segment can be independently controlled to display or not, thus combining to display different numbers, letters, symbols, or simple graphics. For example, on common digital watches and calculators, the display screen can clearly show the time, calculation results, and other information by controlling the on and off of different segments. Based on this, custom segment LCD displays can be designed and produced in a personalized manner according to specific user requirements for display content, size, shape, interface, and other aspects.

​

II. What are the Unique Advantages of Custom Segment LCD Displays?​

(A) High Degree of Customization​

The greatest advantage of custom segment LCD displays is their high degree of customization. Users can freely design parameters such as the number of segments, shape, size, and color of the display screen according to the characteristics and functional requirements of their products. For example, for some small medical testing devices, in order to display test data and status more intuitively, a customized irregular-shaped segment LCD display can be used to perfectly fit the appearance of the device. In smart home control panels, customized segment LCD displays with specific display patterns and characters can be designed according to the layout and functional requirements of the panel, enhancing the overall aesthetics and user experience of the product.​

(B) Low Power Consumption​

Compared with other types of display screens, custom segment LCD displays have extremely low power consumption. This is because when displaying, only the segments that need to be displayed are powered, and the non-displayed segments do not consume power. This characteristic makes it very suitable for devices powered by batteries, such as electronic blood pressure monitors, blood glucose meters, wireless sensors, etc., which can effectively extend the battery life of the devices and reduce the frequency of battery replacement.​

(C) High Cost-Effectiveness​

Due to the relatively simple structure and mature manufacturing process of custom segment LCD displays, their production costs are low. For products with low display requirements that only need to display simple numbers, symbols, or graphics, choosing custom segment LCD displays can not only meet the display requirements but also control costs, offering high cost-effectiveness. At the same time, mass customization can further reduce the unit cost, bringing greater economic benefits to enterprises.​

(D) Wide Operating Temperature Range​

Custom segment LCD displays can operate normally within a wide temperature range. Generally, they can stably display in an ambient temperature range of -20°C to 70°C, and some specially designed products can even adapt to more extreme temperature environments. This characteristic makes them suitable for devices in various harsh environments, such as outdoor instruments and industrial control equipment.

​

III. In Which Fields are Custom Segment LCD Displays Applied?​

(A) Consumer Electronics​

Custom segment LCD displays are widely used in the field of consumer electronics. In addition to digital watches and calculators mentioned earlier, they are also commonly found in kitchen appliances (such as the control panels of microwave ovens and ovens), remote controls, electronic scales, and other products. In kitchen appliances, custom segment LCD displays can clearly show cooking time, temperature, and other parameters. The displays on remote controls can show information such as channels and volume, facilitating user operation.​

(B) Medical Equipment​

Custom segment LCD displays play an important role in medical equipment. For example, in home medical devices such as blood glucose meters and blood pressure monitors, they can quickly and accurately display test data, making it convenient for patients to monitor their health conditions. On some professional medical instruments, custom segment LCD displays can show the working status, parameter settings, and other information of the equipment, helping medical staff with operation and diagnosis.​

(C) Industrial Control and Instrumentation​

In the fields of industrial control and instrumentation, custom segment LCD displays are commonly used display components. On industrial control panels, custom segment LCD displays can display the operating parameters, fault codes, and other information of the equipment in real-time, facilitating operators to monitor and maintain the equipment. Various instruments, such as pressure gauges, thermometers, flow meters, etc., can clearly and intuitively display measurement data using custom segment LCD displays, improving the efficiency and accuracy of industrial production.​

(D) Automotive Electronics​

Custom segment LCD displays are also gradually being applied in the field of automotive electronics. Some components of automobiles, such as instrument panels, vehicle air conditioning control panels, and car radios, may use custom segment LCD displays to show information such as vehicle speed, fuel quantity, temperature, and radio station information, providing drivers with clear information display and enhancing the driving experience.

​

IV. How Will Custom Segment LCD Displays Develop in the Future?​

With the continuous progress of technology, custom segment LCD displays will also face new development opportunities and challenges. In the future, they may develop towards higher contrast and faster response speed to improve the display effect and user experience. In terms of process, the manufacturing process may be further optimized to achieve more precise segment design and higher production efficiency. In the application fields, with the rapid development of industries such as the Internet of Things and smart homes, custom segment LCD displays are expected to be applied in more emerging fields, providing more personalized and intelligent display solutions for products in these fields.​

In conclusion, custom segment LCD displays play an important role in many fields with their advantages such as high customization, low power consumption, high cost-effectiveness, and wide operating temperature range. With continuous technological innovation and development, they will demonstrate greater value and potential in the future of the electronic display field.
