How to Choose a TFT LCD Display for Maximum Performance
Choosing the right TFT LCD display might seem hard, but it’s not. The trick is to know what your project needs. Think about how the display will work in real life. For example, factories need screens that are very bright (800 cd/m² or more) and easy to see from different angles. On the other hand, gadgets for everyday use often focus on sharp images and smaller sizes, like a 13.3 inch screen.
Why is matching the display to the job so important? The global TFT LCD market was worth $179.9 billion in 2023. It’s expected to grow to $256.3 billion by 2033. This shows more people want displays made for specific tasks, like phones or factory machines. By looking at things like features, toughness, and custom options, you can choose the TFT LCD display that works its best where it’s needed most.
Key Takeaways
- Think about how you will use the TFT LCD screen. Is it for gadgets, cars, medical tools, or factories?
- Check where the screen will be used. Will it face heat, sunlight, or water?
- Know what users want. Make sure it looks good, works easily, and lasts long.
- Look at important details like resolution and pixel size. Clearer screens are better for detailed work.
- Think about brightness and contrast. Bright screens are great outside, and contrast makes colors pop.
- Check how the screen looks from the side. Wide angles help everyone see clearly, even from different spots.
- Pick a screen that is tough and can handle bad weather or hard hits.
- See if you can customize it. Add features like extra brightness for outdoor use or touch screens for easy control.
Understanding How to Choose the TFT LCD Display
Defining the Application
Before looking at technical details, think about the display's purpose. What will it do? This is the first step in deciding. For example, a TFT LCD for factory machines must handle tough conditions. A smartphone display, however, focuses on bright colors and saving power.
Here’s an easy way to figure it out:
Define Your Application: Write down how the display will be used. Is it for gadgets, cars, medical tools, or factory machines? Each has special needs. For example:
- Consumer Electronics: Phones and TVs need sharp images and low power use.
- Automotive: Car screens must be strong and easy to see in sunlight.
- Healthcare: Medical tools need clear, dependable displays for imaging.
- Industrial: Factory screens must survive rough conditions and last long.
Assess Your Environment: Think about where the display will work. Will it face heat, cold, water, or sunlight? Outdoor screens, like signs, need to be bright and waterproof.
Here’s a quick look at specs for tough environments:
For colder places, special liquid crystals can help:
By knowing the purpose and environment, you can pick the right TFT LCD display more easily.
Identifying User Expectations
After defining the purpose, think about the user. What do they want from the display? This is important because happy users mean success.
Consider these points:
- Visual Quality: People like clear pictures, bright colors, and smooth motion. For instance, phone users want sharp screens with lots of detail.
- Ease of Use: Touchscreens should be quick and simple to use. Factory workers may prefer big screens with easy controls.
- Reliability: In hospitals or cars, displays must work well without problems.
Different industries have different needs:
By knowing what users expect, you can choose a display that works well for them. This also helps avoid picking the wrong display for the job.
Evaluating Key Specifications for TFT LCD Displays
Resolution and Pixel Density
Resolution and pixel density decide how clear a screen looks. Resolution means the number of pixels on the screen. Pixel density shows how close those pixels are together. Both affect how sharp images and text appear.

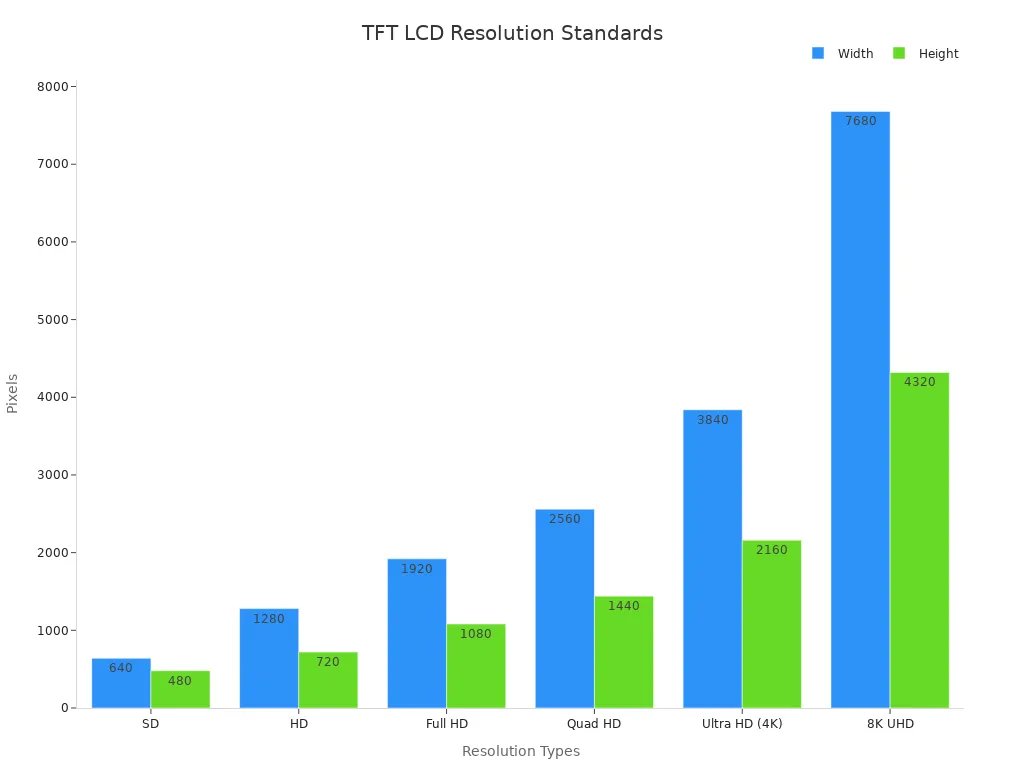

TFT LCD displays have resolutions from SD (640 x 480) to 8K UHD (7680 x 4320). Here’s a simple chart:
Higher pixel density makes pictures sharper and clearer. This is useful for gaming, design, or medical screens. You can find pixel density (PPI) using this formula:
PPI = sqrt((Width^2) + (Height^2)) / Diagonal
For tasks needing precision, like photo editing, pick higher resolutions. These features make devices look high-quality and valuable to users.
Brightness and Contrast Ratio
Brightness and contrast ratio help screens work in different lighting. Brightness, measured in candelas per square meter (cd/m²), shows how visible the screen is. Outdoor screens need at least 1000 cd/m² to be clear.
Contrast ratio compares the darkest black to the brightest white. Higher ratios make images more colorful and detailed.
Here’s how these features affect performance:
For screens used in changing light, like cars or kiosks, choose high brightness and contrast. These features keep the screen easy to read and attractive.
Viewing Angle Considerations
Tilting a screen can make colors fade or images distort. Viewing angles fix this problem. A wide viewing angle lets the screen look good from different positions.
Viewing angles are measured in degrees. Wider angles mean better visibility for people sitting off-center. This is important for TVs, car dashboards, or meeting room screens.
Think about how users will see the screen. If it’s viewed from many angles, pick models with advanced viewing technology. This ensures everyone sees the same clear and bright display.
Durability and Environmental Resistance
When picking a TFT LCD display, toughness is very important. Screens often face hard conditions, especially outdoors or in factories. You need a screen that can handle heat, cold, water, and hits without failing.
Companies test these screens in extreme conditions to make sure they last. Here are some common tests:
These tests show that TFT LCD displays can handle tough environments. For example, temperature cycling checks if the screen works in very hot or cold places. Drop tests prove it can survive falls. If you need a screen for outdoor use or factories, pick one with strong durability ratings.
Tip: Always check how well the screen resists the environment. This ensures it works well in your conditions.
Size and Aspect Ratio
The size and shape of a screen matter a lot. The size of a TFT LCD display is measured diagonally, from one corner to the other. Sizes range from small 3.5-inch screens for handheld devices to big 15.6-inch screens for laptops or factory panels.
Aspect ratio is the width compared to the height of the screen. Common ratios include:
- 4:3: Good for older devices or square-like displays.
- 16:9: Standard for modern screens, great for widescreen viewing.
- 16:10: Offers more vertical space, ideal for work tasks.
Think about how the screen will be used when choosing size and ratio. Small screens are great for portable gadgets. Bigger screens work better for dashboards or kiosks. For gaming or videos, a widescreen ratio like 16:9 is best.
Note: Bigger screens aren’t always better. They use more power and take up more space.
Touchscreen Functionality
Touchscreens are now common in many TFT LCD displays. They make devices easier to use and more fun. With a tap, swipe, or pinch, you can move through menus, zoom in, or rotate items.
Here’s why touchscreens are popular:
- Simple gestures like tapping and swiping make them easy to use.
- Multi-touch lets you zoom or rotate, great for games or design.
- They are built to handle daily use, even in tough conditions.
Touchscreens are also helpful in professional tools. For example, in medical devices, they allow precise control and clear visuals. This improves accuracy and makes them user-friendly.
If you need a screen for a gadget, machine, or medical tool, a touchscreen adds great value. Just ensure it’s responsive and tough enough for your needs.
Pro Tip: Choose multi-touch screens for advanced interactions. They make devices more engaging.
Energy Efficiency and Interface Options
Power Use and Performance Balance
Picking a TFT LCD display means thinking about energy use. This is very important for portable devices like tablets or small tools. You need a screen that uses less power but still works well. A screen that uses too much power drains the battery fast. But if it saves energy and lowers quality, it might not work for you.
TFT displays are great at saving energy. New technology has made them even better. They now use less power without losing performance. This makes them perfect for devices where saving energy matters.
- TFT displays use less power than other screens, great for portable gadgets.
- New designs save more energy while keeping sharp images and quick response.
- Using TFT displays helps the planet by cutting down on wasted energy.
Here’s a simple chart comparing energy use and performance:
Choosing the right screen helps your device work well and save energy.
Interface Choices (e.g., HDMI, SPI, LVDS)
The interface connects your TFT LCD display to other devices. It’s like picking the right plug for your TV. Each type has its own strengths and works best for certain tasks.
For example, SPI is simple and good for small projects like Arduino. LVDS works well for long cables and is used in factories or hospitals. HDMI is best for high-quality video on PCs or media players.
Here’s a quick look at common interfaces:
Each interface has special features for different jobs. SPI is easy and uses little power. LVDS is fast and works in tough places.
Think about what your device needs. Need fast data? Pick LVDS. Want something simple? SPI is a good choice. Match the interface to your project for the best results.
Tip: Always check if the interface works with your hardware. This avoids problems and ensures everything runs smoothly.
Customization Options for Specific Needs
Special Features for Unique Uses
Sometimes, regular TFT LCD displays aren’t enough. Your project might need something special, like for a medical tool, outdoor kiosk, or car dashboard. Custom features let you adjust the display to match your needs. This makes it work better and easier to use.
Here are some examples of custom features:
- High Brightness: Screens with 600 nits or more stay clear in sunlight.
- Wide Temperature Range: Works between -30°C and 80°C in tough conditions.
- Durability: Glass+Glass screens resist scratches, hits, and wear.
- Low Latency: Fast response times are great for gaming or car systems.
For example, military screens often meet MIL-STD-810 rules to handle harsh conditions. Medical screens may need NVIS compliance for low-light use. These features make TFT LCDs useful in many industries.
Tip: Start with a basic screen for testing. After testing, decide if you need custom changes.
Working with Manufacturers for Custom Displays
If your project needs something truly unique, team up with manufacturers. They can change parts like the cover glass, interface, or PCB design to fit your needs.
Here’s how the process usually works:
Take car dashboards as an example. Automakers now use custom TFT LCDs instead of basic screens. These displays allow themes, menus, and content that change with driving modes. This makes cars smarter and more user-friendly.
If you’re thinking about custom screens, follow this checklist:
- Write down your project’s special needs.
- Pick a manufacturer with experience in your field.
- Plan lead times and testing to avoid delays.
Pro Tip: Start working with manufacturers early. This helps them understand your goals and avoids problems later.
By customizing your TFT LCD display and teaming up with experts, you can create a screen that works perfectly for your project.
Comparing TFT LCD with Other Display Technologies
TFT LCD vs. AMOLED
TFT LCD and AMOLED screens each have their own benefits. TFT LCDs are cheaper and last longer, making them great for many devices. AMOLED screens show brighter colors and darker blacks, making pictures look amazing.
Here’s a simple comparison:
AMOLED screens are better for bright colors and deep contrast. They’re great for phones and fancy TVs. But TFT LCDs save more power and cost less, making them better for budget-friendly devices.
Tip: For outdoor devices, choose TFT LCDs. They work better in sunlight than AMOLED screens.
TFT LCD vs. Other Display Types
TFT LCDs are also better than regular LCDs or Quantum Dot screens in some ways. They balance good performance, low cost, and energy savings.
Here’s how they compare:
TFT LCDs are great for clear pictures and smooth motion. They’re perfect for gaming or watching videos. Newer TFT screens also use less power, making them more competitive.
- Image Quality: TFT screens show sharp pictures and bright colors.
- Refresh Rates: Faster refresh rates reduce blur, great for games and videos.
- Power Use: Modern TFT screens save more energy than older ones.
Note: If you need a screen that’s affordable and works well, pick a TFT LCD. It’s a good choice for many uses.
When picking a TFT LCD display, think about your project’s needs. A good match helps the screen work better and keeps users happy. Focus on important features like resolution, brightness, and toughness. Also, check if the environment or custom options could improve the display for your use.
If you’re not sure, ask experts or companies like OPL. They can help you find the best display and save you time.
Tip: Choosing the right display is key to your project’s success!
FAQ
What is a TFT LCD display?
A TFT LCD is a screen type that uses thin-film transistors. This improves picture quality. It’s found in phones, laptops, and factory tools.
How do I choose the right size for my project?
Think about how you’ll use the screen. Small screens, like 3.5 inches, are good for portable gadgets. Bigger screens, like 15.6 inches, suit dashboards or kiosks. Pick a size that fits your needs.
Why is brightness important for outdoor displays?
Outdoor screens need to be bright to stay clear in sunlight. Brightness is measured in candelas per square meter (cd/m²). A level of 1000 cd/m² or more works best outside.
Can I customize a TFT LCD display?
Yes, you can! You can add features like extra brightness or special interfaces. Custom options make displays better for cars, medical tools, or outdoor use.
What’s the difference between TFT LCD and AMOLED?
TFT LCDs cost less and save energy, making them great for budget devices. AMOLED screens show brighter colors and deeper blacks but cost more. Choose based on your project’s needs.
How do I ensure my display works in tough environments?
Look for features like waterproofing and scratch resistance. Check if it passed tests for drops, vibration, or extreme temperatures.
What interfaces are compatible with TFT LCD displays?
Interfaces like HDMI, SPI, and LVDS work with TFT LCDs. HDMI is good for video, SPI is simple for small projects, and LVDS handles long cables.
Are TFT LCD displays energy-efficient?
Yes, they are! New TFT LCDs save power while working well. They’re perfect for devices where battery life is important.
Tip: Check power specs to balance energy use and performance.
