A professional photographer or videographer can’t squint through a small viewfinder during a lengthy photoshoot and expect to get quality results. With an LCD video camera monitor, you can see your picture clearly and in high detail.

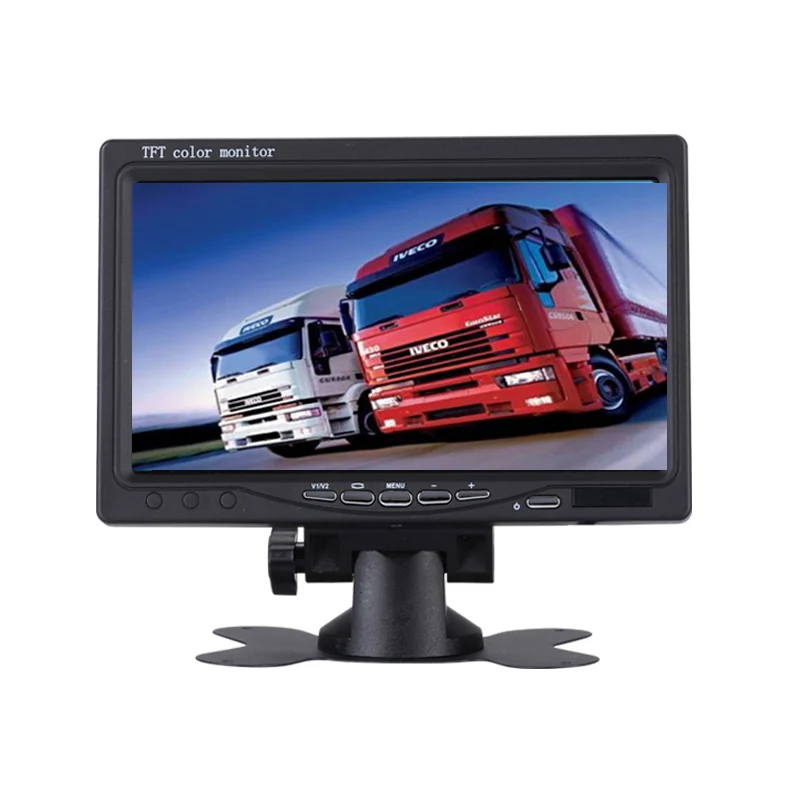

This screen has a high-resolution 7-inch TFT LCD screen that displays 16:9 widescreen or 4:3 with easily adjusted color, brightness, contrast, and volume settings. Its RCA video and audio inputs and NTSC & PAL compatible system can improve any type of project without exceeding your budget. It’s versatility allows it to be used on the DSLR camera itself, on a camera crane, or as a jib-mounted monitor.

The liquid crystal research of the 1960s was characterized by the discovery of and experiments on the properties of the liquid crystals. George H. Heilmeier of the RCA based his research on that of Williams, diving into the electro-optical nature of the crystals. After many attempts to use the liquid crystals to display different colors, he created the first working LCD using something called a dynamic scattering mode (DSM) that, when voltage is applied, turns the clear liquid crystal layer into a more translucent state. Heilmeier was thus deemed the inventor of the LCD.

In the late 1960s, the United Kingdom Royal Radar Establishment (RRE) discovered the cyanobiphenyl liquid crystal, a type that was fitting for LCD usage in terms of stability and temperature. In 1968, Bernard Lechner of RCA created the idea of a TFT-based LCD, and in that same year, he and several others brought that idea into reality using Heilmeier’s DSM LCD.

After the LCD’s entrance into the field of display technology, the 1970s were full of expansive research into improving the LCD and making it appropriate for a greater variety of applications. In 1970, the twisted nematic field effect was patented in Switzerland with credited inventors being Wolfgang Helfrich and Martin Schadt. This twisted nematic (TN) effect soon conjoined with products that entered the international markets like Japan’s electronic industry. In the US, the same patent was filed by James Fergason in 1971. His company, ILIXCO, known today as LXD Incorporated, manufactured TN-effect LCDs which grew to overshadow the DSM models. TN LCDs offered better features like lower operating voltages and power consumption.

From this, the first digital clock, or more specifically an electronic quartz wristwatch, using a TN-LCD and consisting of four digits was patented in the US and released to consumers in 1972. Japan’s Sharp Corporation, in 1975, began mass production of digital watch and pocket calculator TN LCDs, and eventually, other Japanese corporations began to rise in the market for wristwatch displays. Seiko, as an example, developed the first six-digit TN-based LCD quartz watch, an upgrade from the original four-digit watch.

Nevertheless, the DSM LCD was not rendered completely useless. A 1972 development by the North American Rockwell Microelectronics Corp integrated the DSM LCD into calculators marketed by Lloyds Electronics. These required a form of internal light to show the display, and so backlightswere also incorporated into these calculators. Shortly after, in 1973, Sharp Corporation brought DSM LCD pocket-sized calculators into the picture. A polymer called polyimide was used as the orientation layer of liquid crystal molecules.

In the 1980s, there was rapid progress made in creating usable products with this new LCD research. Color LCD television screens were first developed in Japan during this decade. Because of the limit in response times due to large display size (correlated with a large number of pixels), the first TVs were handheld/pocket TVs. Seiko Epson, or Epson, created the first LCD TV, releasing it to the public in 1982, which was soon followed by their first fully colored display pocket LCD TV in 1984. Also in 1984 was the first commercial TFT LCD display: Citizen Watch’s 2.7 inch color LCD TV. Shortly after, in 1988, Sharp Corporation created a 14 inch full-color TFT LCD that used an active matrix and had full-motion properties. Large-size LCDs now made LCD integration into large flat-panel displays like LCD screens and LCD monitors possible. LCD projection technology, first created by Epson, became readily available to consumers in compact and fully colored modes in 1989.

The LCD growth in the 1990s focused more on the optical properties of these new displays in attempts to advance their quality and abilities. Hitachi engineers were integral to the analysis of the LCD industry, previously centered in Japan, began expanding and moving towards South Korea, Taiwan, and later China as well.

As we entered the new century, the prominence of LCDs boomed. They surpassed the previously popular cathode-ray tube (CRT) displays in both image quality and sales across the world in 2007. Other developments continued to be made, such as the manufacturing of even larger displays, adoption of transparent and flexible materials for LCD hardware, and creation of more methods to

As of today, as LCD displays have developed quite a bit, but have remained consistent in structure. Illuminated by a backlight, the display consists of, from outermost to innermost two polarizers, two substrates (typically glass), electrodes, and the liquid crystal layer. Closer to the surface is sometimes a color filter as well, using an RGB scheme. As light passes through the polarizer closest to the backlight, it enters the liquid crystal layer. Now, depending on whether an electric field directed by the electrodes is present, the liquid crystal will behave differently. Whether using a TN, IPS, or MVS LCD, the electrode electric field will alter the orientation of the liquid crystal molecules to then affect the polarization of the passing light. If the light is polarized properly, it will pass completely through the color filter and surface polarizer, displaying a certain color. If partially polarized correctly, it will display a medium level of light, or a less bright color. If not polarized properly, the light will not pass the surface, and no color will be displayed.

1927: Vsevolod Frederiks in Russian devised the electrically switched light valve, called the Fréedericksz transition, the essential effect of all LCD technology.

1967: Bernard Lechner, Frank Marlowe, Edward Nester and Juri Tults built the first LCD to operate at television rates using discrete MOS transistors wired to the device.

1968: A research group at RCA laboratories in the US, headed by George Heilmeier, developed the first LCDs based on DSM (dynamic scattering mode) and the first bistable LCD using a mixture of cholesteric and nematic liquid crystals. The result sparked a worldwide effort to further develop LCDs. George H. Heilmeier was inducted in the National Inventors Hall of Fame and credited with the invention of LCDs. Heilmeier’s work is an IEEE Milestone.

1979, Peter Le Comber and Walter Spear at University of Dundee discovered that hydrogenated amorphous silicon (Alpha-Si:H) thin film transistors were suitable to drive LCDs. This is the major breakthrough that led to LCD television and computer displays.

1972: Tadashi Sasaki and Tomio Wada at Sharp Corporation built a prototype desktop calculator with a dynamic scattering LCD and started a program to build the first truly portable handheld calculator.

A close look at the video input interfaces used in LCD monitors. With the emergence of a new generation of interfaces, growing numbers of LCD monitors feature multiple and different interfaces. Image quality and ease of use are likely to depend on how well the user knows and uses the unique characteristics of each interface when connecting the appropriate devices.

Note: Below is the translation from the Japanese of the "IT Media LCD Display Course II, Part 2," published on December 16, 2008. Copyright 2011 ITmedia Inc. Information about Mini DisplayPort was added to the English translation.

Driven by demand for higher-resolution monitor environments and the proliferation of high-definition devices, the types of video input interfaces ("interfaces" hereinafter) found in LCD monitors continue to proliferate. More than likely, significant numbers of users encountering LCD monitors incorporating multiple input systems have wondered what to connect to which terminal. In this article, we"ll discuss, one by one, the main interfaces used today. But first, let"s give an overview of the types of interfaces available.

The interfaces for LCD monitors designed for use with PCs can be grouped into two categories: analog interfaces, carryovers from the days of CRT monitors, and the digital interfaces developed more recently. An analog interface involves the additional steps of conversion of digital signals within the PC to analog signals for output and the conversion of these analog signals back into digital form by the LCD monitor receiving the signal. This series of actions can degrade image quality. (Image quality also depends on the quality of the route used in converting from analog to digital.) A digital interface offers superior image quality, since it transmits digital signals without conversion or modification.

LCD-monitor interfaces also can be grouped by differences in the devices connected. Major categories here are inputs from PCs and inputs from audio-video (AV) devices. PC input generally involves one of the following five interface types: D-Sub for analog connections; DVI-D for digital connections; DVI-I, which is compatible with both analog and digital connections; and HDMI and DisplayPort, representing the new generation of interfaces for digital connections. Other more recent adapters input and output PC RGB signals and LCD monitors using USB as a video input interface.

It"s worth noting that while HDMI was designed for use with AV input and output, the standard also supports PC input and output. LCD monitors incorporating HDMI ports include some that support PC input officially and others that—whether or not they can display PC input—do not support PC input officially.

When used as a monitor interface, a D-Sub port is also known as a VGA port, an analog connection standard that"s been around for some time. The connector is a DE-15 connector with 15 pins in three rows, often referred to as a "mini-D-Sub 15-pin" or "D-Sub 15-pin" connector. (Some connectors omit unused pins.) D-Sub is currently the most widely used monitor interface, compatible with very large numbers of PCs and LCD monitors.

A D-Sub female connector (photo at left) installed on the monitor side and a D-Sub male connector (center photo) on the cable side. A D-Sub cable features a screw on each end of the connector that can be turned by hand to prevent unintended disconnection (photo at right).

The Digital Visual Interface (DVI) standard uses one of three types of connectors: DVI-D for digital connection; DVI-A for analog connection; and DVI-I, compatible with both digital and analog connections. The DVI-A connector for analog use is not in general use and can be disregarded when choosing monitor products.

Keep in mind that there are two types of mainstream DVI-D digital connections: single link and dual link. For a single-link DVI-D connection, the maximum resolution that can be displayed is 1920 × 1200 pixels (WUXGA). Higher resolutions (such as 2560 × 1600 pixels) require a dual-link DVI-D connection providing double the bandwidth of a single-link DVI-D (7.4 Gb/second or higher). To use a dual-link DVI-D connection, the DVI-D input on the LCD monitor side, the DVI-D output on the PC side, and the DVI-D cable must all be compatible with the dual-link DVI-D standard.

DVI-I, the other DVI standard, can be used with both digital and analog connections, depending on the monitor cable used. Since a DVI-I analog signal is compatible with the D-Sub standard, an analog connection can be formed by using a monitor cable with a D-Sub connector on one end and a DVI-I connector on the other. Depending on the cable and the connectors on the PC side and on the LCD-monitor side, it may also be possible to use an adapter for connecting a DVI-I connector with a D-Sub connector.

A DVI-D female connector installed on the monitor side (photo at left) and a DVI-D single-link (18-pin) male connector installed on the cable (center photo). As with D-Sub cables, a DVI-D cable can be secured into place by turning the screws on either end of the connector (photo at right).

Monitor cables with DVI-I connectors on both ends were available at one time. These are rare today, since this configuration made it difficult to determine whether the connection was digital or analog and generated frequent connection issues. Having DVI-I connectors on both the PC side and the LCD monitor side can lead to confusion. In such cases, the ideal configuration is a digital connection made with a DVI-D cable.

Formally approved in May 2006, the DisplayPort standard is a new standard released in May 2005 by the Video Electronics Standards Association (VESA) of the United States, an industry organization that establishes standards for PC-related interfaces. As a video interface promoted by VESA, a constituency composed mainly of PC and monitor makers, it is designed to succeed the DVI and D-Sub standards as a PC interface. However, there"s no reason it can"t also be used in AV equipment.

Since DisplayPort is a serial interface like PCI Express that generates a clock from the data instead of using external clock signals, data transmission speeds and functionality are easily improved. In addition, since DisplayPort employs a configuration wherein the LCD monitor is operated directly, it makes it possible to reduce the numbers of components. Another benefit is its ability to transmit signals over distances of up to 15 meters.

On an RCA connector with three single pins in a row, the yellow pin is the composite female connector (photo at left). Most composite cables assume the form of a single cable that splits into three connectors, with the yellow connector used for video and the red and white for stereo audio (center photo). An S-Video female connector (photo at right), which has four pins.

Additionally, there are two types of S-Video ports: S1, which can identify video with aspect ratios of 4:3 and 16:9; and S2, which can identify "letterbox" video with black bands above and below, to display 16:9 aspect-ratio video on 4:3 aspect-ratio monitors. A display device receiving video with a 16:9 aspect ratio or letterbox video performs the appropriate scaling to display the correct aspect ratio.

Let"s conclude by returning to the subject of PC environments. Some recent products use USB ports for PC display output. While USB was not originally intended as a display interface, demand has emerged for an easier way (easier than using a D-Sub cable) to set up multi-monitor environments, particularly for laptops and low-priced netbooks.

Most such products are adapters, which connect to the PC using USB and feature DVI-D or DVI-I connectors on the output side. These are then connected to LCD monitors. After the user installs a device driver, the PC recognizes the adapter as a monitor adapter. Users can create a multi-monitor environment in Windows by activating the secondary monitor connected to the adapter in Display Properties. In terms of display performance, these adapters are not well suited to uses that require high-speed response; they are associated with slight delays in reflecting mouse or keyboard operations.

A small number of LCD monitors on the market use USB as a video input interface, making it possible to output and display a PC screen through a USB connection between the PC and the LCD display. These, too, are ideal for laptops and netbooks, since they allow users to use laptops connected to large-screen LCD monitors at their office desks or at home, then use the laptops for mobile use when out and about simply by unplugging a single USB cable.
