4.3 inch tft lcd monitor quotation

This TFT LCD monitor has been opened up and returned to inventory. The monitor has been tested to be 100% operational and undamaged. Save money and get a fully functional 4.3" LCD monitor, the only thing that is wrong is the box has been opened.

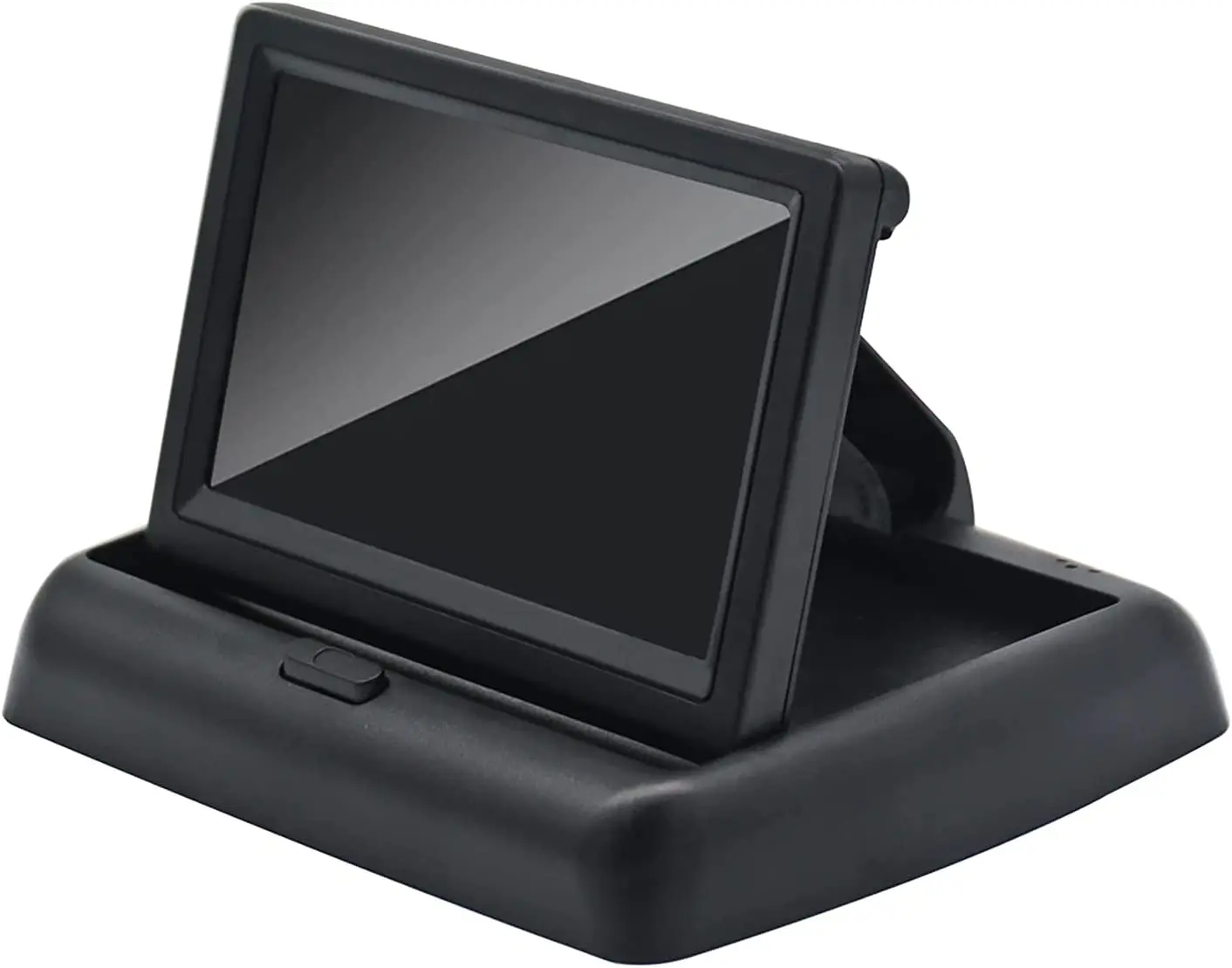

Hot Tags: 4.3 " 480x272 Tft Lcd Screen 2 Ch AV Input Car Rearview Mirror 4.3 Inch LCD Monitor, China, wholesale, cheap, quotation, low price, in stock

We "Sourcewell Devices Private Limited" are a Wholesale Distributor of Panel And POS Printers, IoT Devices, Microcontroller, Integrated Circuits, Voltage Regulators, LCD Module, etc.

NMLCD-43CTis a colour active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a colour TFT-LCD panel, driver IC, FPC and a back light unit and with a Capacitive Touch Panel(CTP). The module display area contains 800x480pixels. This product accords with RoHS environmental criterion.

Shenzhen SLS Industrial Co.,ltd established in 2003, is a professional LCD module manufacturer and solution provider. We have 1 full-auto COG assembly line, 2 semi-auto assembly line, backlight assembly line, no dust TP bonding line and manufacturing tech support, we can provide unique, innovative and cost effective LCD module development and manufacturing. Our product range includes: middle-small size TFT LCD, industrial capacitive touch panel... Our LCD products have been widely used in communications, GPS, Equipment, electronic audio-visual, instrumentation, household appliances, PDA and other industries.

This premium LCD TFT display provides high visibility, and versatile construction with Multi-domain vertical alignment (MVA) technology. The 480x272 resolution TFT display allows wide viewing up to 75° from any direction. This 24-bit display is RoHS compliant and offers high contrast images with RGB interface and a 4-wire resistive touch panel.

CH430HD01A is a high-definition LCD screen designed and mass-produced by Chenghao Optoelectronic to meet market demand. It includes a tft lcd panel, a driver IC, a backlight and FPC components.

This tft lcd panel has a display area measuring 4.3 inch diagonally and can display 1280x720 resolution HD video animation. At the same time, due to the adoption of IPS display technology, the 4.3 HD tft display has a full viewing angle of 80/80/80/80, which allows users to obtain a better viewing angle experience.

The back light is also another highlight of CH430HD01A. Since 12 pcs white is used as the light source in the Back light module, the luminance of this module reaches more than 1000 cd/m2, so the HD ips tft lcd can be read in sunlight.

The driver IC is firmly attached to the tft lcd glass panel, and uses the LVDS interface to interconnect with external devices. When inputting RGB signals, the driver IC can drive the module to display 16M colors.

Kingtech 4.3 inch 480x800 IPS/free/all viewing angle TFT LCD display is our most leading product. This 4.3 inch LCD display is mainly used for blackbox, so this 4.3 inch TFT LCD display is very popular in Korea Market.

This 4.3inch IPS display has the existing resistive touch and TFT capacitive touchscreen, we can also custom the touch panel according to the customer"s requirements. We can provide display LCD gps 4.3, mipi dsi 4.3 display and raspberry pi 4.3 TFT. Any requests for products will be welcomed in our Kingtech LCD.

Maclight 4.3 inch tft lcd have the standard resolution with 480x272 pixels and 800x480 pixels, regular RGB interface with ST7282, OTA5108, HX8257A IC driver, and custom made MCU interface with SSD1963, RA8875 series interface for difference application.

Our 4.3 inch tft lcd have standard working temperature and wide working temperature 4.3" lcd that can up to -30~+80 °c, The 4.3" lcds have standard viewing angle TN TFT LCD type ( 6 o"clock and 12 o"clock) and IPS tft lcd with full viewing angle.

Our 4.3" tft touch screen could combine with resistive touch screen (RTP) and capacitive touch screen( CTP / PCAP), to the 4.3" PCAP, air-gap bonding and optical bonding to the CTP is welcome to us. to the 4.3 inch capacitive touch, we could custom make the CTP cover glass up to 3mm thickness cover glass and anti-finger print, anti-glare surface treatment.

Maclight 4.3 inch tft lcd display is also including 4.3" sunlight readable tft lcd display with 1000 nits high brightness tft lcd, that is suitable for outdoor application.

1. Sizes: please confirm the display area sizes for the project, the typical 4.3" tft lcd display active area is around 95.04*53.86 mm (4.3" diagonal).

2. Resolution: Would the display used in landscape or portrait type, 4.3" tft lcds have 480RGB*272 and 800RGB*480 in landscape type, and 480RGB*800 in portrait type. if we choose the IPS lcd with full viewing angle, we could use the 480RGB*272 and 800RGB*480 landscape lcd, and rotate 90 degree, then turn to portrait 4.3" tft lcd as well.

4. Viewing angle: would the 4.3" lcd be viewed from top viewing or bottom viewing, or would require full viewing angle? Maclight have full viewing angle IPS 4.3 lcd, and 12 o"clock (top), 6 o"clock (bottom) viewing angle for optional.

5. Working environments: if the lcd screen is used indoor, you could choose the standard brightness than lower than 400cd/m2, if used in outdoor, we suggest to choose the tft lcd brightness higher than 500cd/m2, that can be sunlight readable.

7. IC drivers: 4.3" TFT lcd have tradition IC driver ILI6480B, HX8257A, and new ST7282 IC drivers, that can fit the 4.3 lcds from tft lcd manufacturers Innolux, Tianma, BOE, Hannstar etc, because 4.3" lcd is digital RGB interface, the IC driver is not matter when choosing a new 4.3" lcd, or a replacement for other 4.3" lcd.

8. Interface: The typical 4.3" tft lcd module interface is RGB interface, we could make it with MCU interface, and HDMI interface, that is compliance for mainly driver boards in the market.

Please contact us for more 4.3" tft lcd products, we still have many 4.3" lcd not on this list below, and we support custom make 4.3" tft lcd as well.

If you are seeking 4.3" tft lcd, Maclight could provide the one stop 4.3" lcd solution for you, best technical support, 12 months warranty time and after sale services, high quality, competitive price, and stable supply, Welcome to contact us for more 4.3" tft lcd display module information.
